Qorvo QPL1811 75Ω CATV Amplifier
Qorvo QPL1811 75Ω CATV Amplifier is a high-performance, broadband, DOCSIS 4.0 MMIC amplifier designed with GaAs pHEMT technology. A Darlington configuration is utilized for broadband performance with on-chip active bias circuit for consistent bias current and repeatable performance. The Qorvo QPL1811 75Ω CATV Amplifier includes two amplifiers used in push-pull configuration for excellent second and third order linearity performance.
The QPL1811 75Ω CATV Amplifier is available in a compact, 8-pin SOIC package and optimized for low noise and high linearity.
Features
- 5V to 7V Single supply
- High gain of 16dB @ 1800MHz
- +42dBm OIP3
- +24dBm P1dB
- 8-pin SOIC compact size
- 50MHz to 1800MHz operation supporting DOCSIS 4.0
- pHEMT GaAs device technologies
Applications
- Broadband CATV amplifiers and nodes
- CATV line driver amplifier
- DOCSIS 4.0
- 75Ω amplifiers
Development Tools
Qorvo QPL1811EVB Evaluation Board
Allows users to evaluate the 50MHz to 1800MHz QPL1811 75Ω CATV Amplifier frequency.
Related Products
Qorvo QPL181x CATV Amplifiers
GaAs pHEMT RF amplifiers with a 50MHz to 1800MHz frequency range, ideal for DOCSIS 4.0 applications.

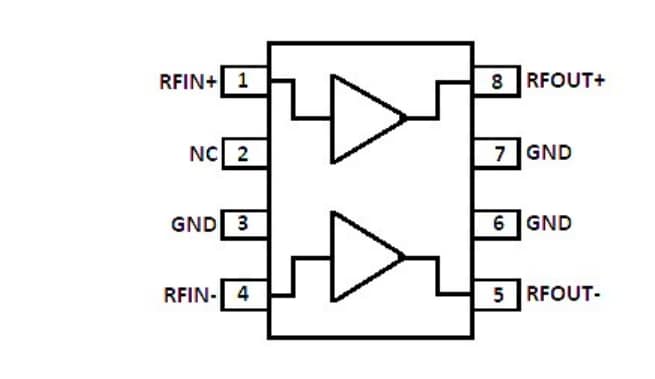

Functional Block Diagram
