Xenarc 800/802 Series 8" LCD Monitors
Xenarc Technologies 800/802 Series 8" LCD Monitors are ruggedized, aluminum encased industrial small monitor solution, utilizing LED backlight technology with a VGA input. The Xenarc 800/802 Series 8" LCD Monitors feature a brushed, anodized aluminum faceplate.
The 800YV 8" Small Monitor Display has 800 x 600 pixels (2400 x 600 sub-pixels) that help present crystal clear texts and ultra-sharp images through a VGA signal. This unit is also available with a touch screen as the 800TSV. Also available is the 802YH, with 1000NIT direct sunlight readability without a touch screen. The 802TSH is a versatile 8" touchscreen display that offers superior readability under direct sunlight and is perfect for outdoor applications.
Features
- Heavy duty aluminum casing
- 5 Wire resistive touchscreen option - USB
- VGA, HDMI, DVI, and AV inputs, 4x3 aspect ratio
- Adjustable LED backlight for night time use
- High performance image and video processor
- Vertical and horizontal image flip
- Front buttons disabling capability
- Chip monolithic ceramic capacitors for improved durability
- AV2 Autoswitching upon signal detection
- VESA 75mm standard
- 26 Pin heavy-duty connector with connector locking
- Brightness of 400cd/m2
- Anti-glare coating
Applications
- Transportation
- Marine, air, heavy vehicles, mining, weigh stations, fleet management, telematics, in-car computing, public transit, cargo
- System integration
- Machinery controls, factory automation, environmental monitoring, home automation, military, smart home
- Point of sale
- Hospitality, digital signage, self-service kiosks, outdoor kiosks and signage, casino
- Data monitoring
- Cloud, IoT, medical, logistics, inventory management, oil & gas/utilities, law enforcement, broadcasting, veterinary, first person view
- Broadcast and production
- Broadcast stations, mobile production vehicles, field rugged deployment for your mobile workforce, studio video production
Specifications
- 800 x 600 Physical resolution
- 640 x 480 to 1920 x 1080 Supported resolution
- 400cd/m2 Brightness
- 500:1 Contrast ratio
- 140° Horizontal, 120° vertical viewing angle
- Response Time (Tr/Tf) of 10/15ms (typ.)
- DC 9V to 36V Operating voltage
- <14W Power consumption
- -4°F - 158°F Operating temperature
- -22°F to 176°F Storage temperature
- Weight of 2.64lbs
- 24 Month warranty
Additional Resources
Videos

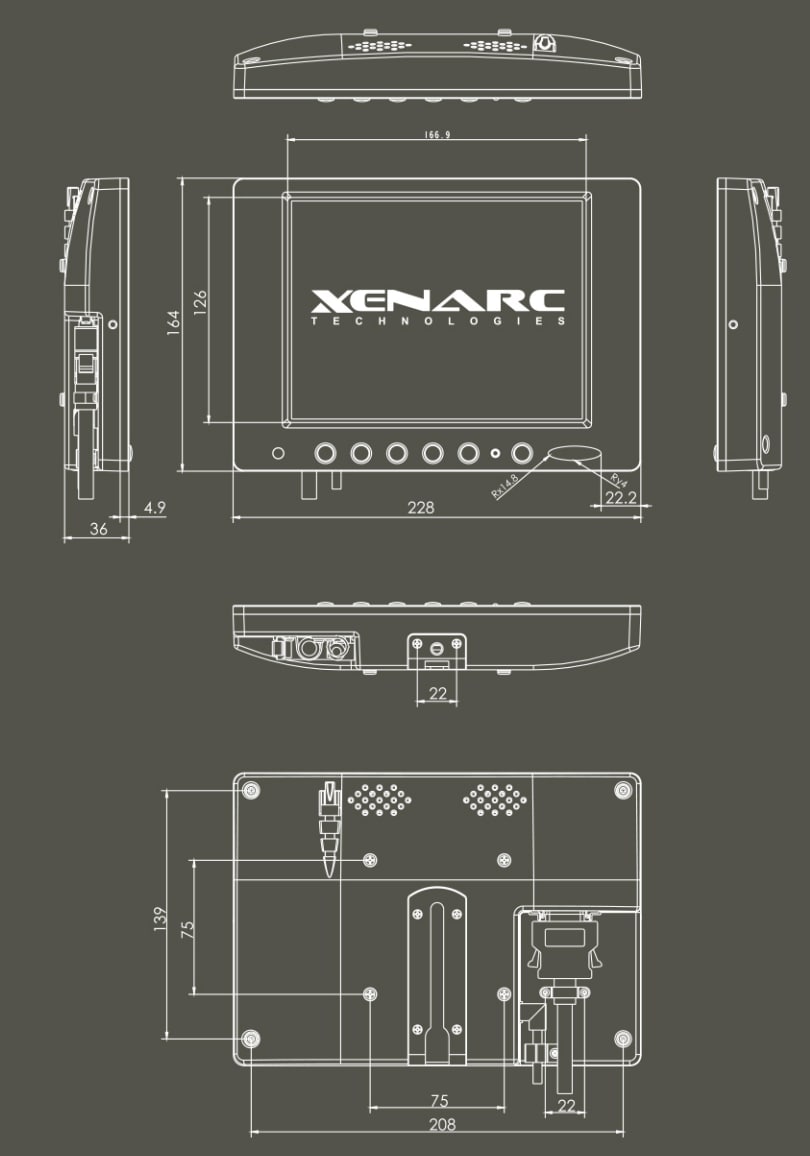

Dimensions

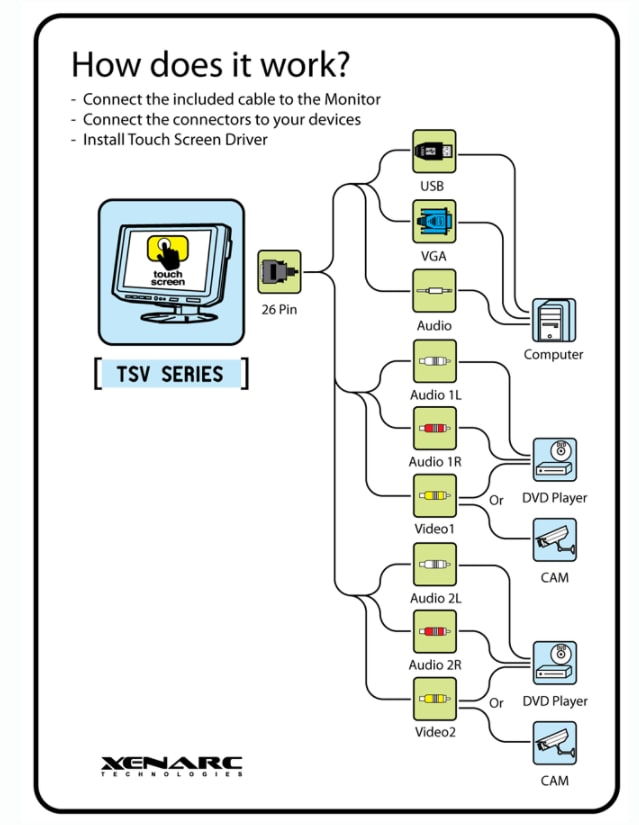

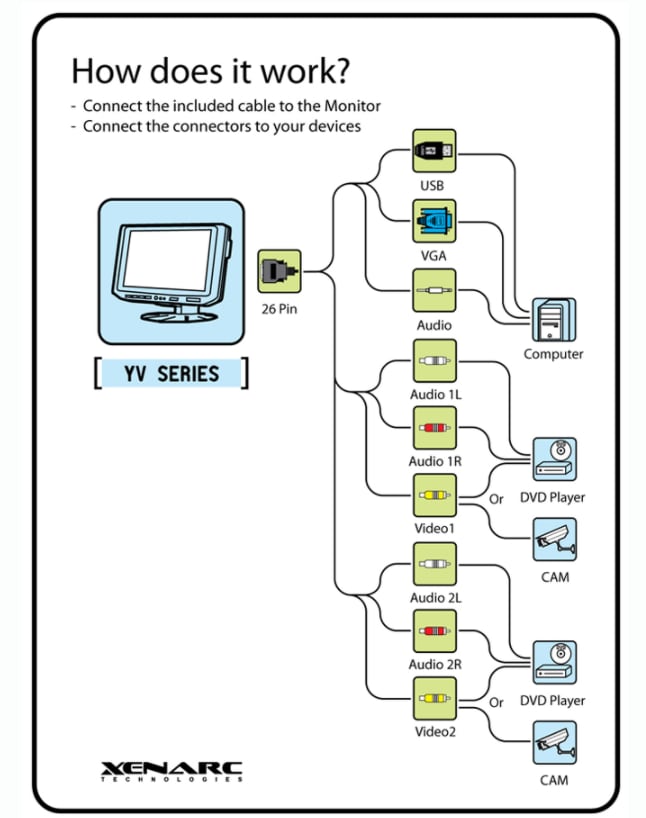

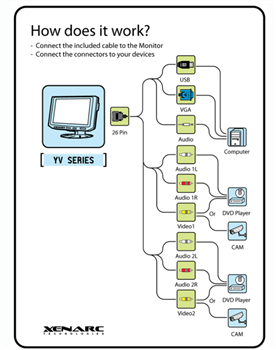

Function Diagrams
