Vishay / Thin Film DFN Dual Flat Thin Film Resistor Networks

Vishay DFN and DFN Divider Dual Flat No Lead Molded Precision Thin Film Surface Mount Resistor Networks feature isolated thin film precision resistors mounted in a 0.8mm pitch 4mm x 4mm dual flat no lead package. The networks feature 50% savings in board space over traditional SOIC packages. Vishay DFN Dual Flat Thin Film Resistor Networks are ideally suited for applications of unity gain operational amplifiers that require close TC tracking and tight ratio tolerances over temperature. DFN Divider resistors offer a wide ratio range.

Datasheets

Features

  • DFN
    • 0.8mm lead pitch
    • MSL level 1 per J-STD-020
    • Low profile 1mm seated height
    • Small size 4mm x 4mm size 50% board savings over SOIC packages
    • Wide resistance range 100Ω to 100kΩ available
    • Custom configurations available
    • Low TCR ±25ppm, TCR tracking to ±3ppm
    • Ratio tolerances to ±0.025%
  • DFN Divider
    • 0.8mm lead pitch
    • MSL level 1 per J-STD-020
    • Low profile 1mm seated height
    • Small size 4mm x 4mm size 50% board savings over SOIC packages
    • Low TCR ±25ppm, TCR tracking to ±5ppm

DFN Schematic

Schematic - Vishay / Thin Film DFN Dual Flat Thin Film Resistor Networks

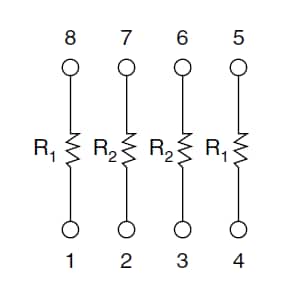

DFN Divider Schematic

Schematic - Vishay / Thin Film DFN Dual Flat Thin Film Resistor Networks
View Results ( 21 ) Page
Dalies Numeris Aprašymas Serija Rezistorių Vertės
DFNA1003AT5 Rezistorių Tinklai ir Matricos 100Kohms 0.1%ABS 0.05% RATIO DFN 100 kOhms
DFNA10-1T5 Rezistorių Tinklai ir Matricos 10K 1K 0.1%ABS 0.05% RATIO DFN (Divider) 1 kOhms, 10 kOhms
DFNA1001AT5 Rezistorių Tinklai ir Matricos 1Kohms 0.1%ABS 0.05% RATIO DFN 1 kOhms
DFNA5002AT5 Rezistorių Tinklai ir Matricos 50Kohms 0.1%ABS 0.05% RATIO DFN 50 kOhms
DFNA1002AT5 Rezistorių Tinklai ir Matricos 10Kohms 0.1%ABS 0.05% RATIO DFN 10 kOhms
DFNA1002DT1 Rezistorių Tinklai ir Matricos 10K OHM .5%/0.1% 8PIN DFN 10 kOhms
DFNA100-1T1 Rezistorių Tinklai ir Matricos DFN (Divider) 1 kOhms, 100 kOhms
DFNA100-1T5 Rezistorių Tinklai ir Matricos 100K 1K 0.1%ABS 0.05% RATIO DFN (Divider) 1 kOhms, 100 kOhms
DFNA1001ATS Rezistorių Tinklai ir Matricos DFN 1 kOhms
DFNA1002AT3 Rezistorių Tinklai ir Matricos DFN 10 kOhms
