Texas Instruments TMS320F280025C ControlCARD Evaluation Module
Texas Instruments TMS320F280025C ControlCARD Evaluation Module is ideal for starting development with the F28002x devices. The F28002x belongs to the C2000™ Microcontrollers (MCUs) family. The F28002x 120-pin controlCARD is intended to provide a well-filtered, robust design that works in most environments.
The TI TMS320F280025C ControlCARD Evaluation Module comes with an HSEC180 (180-pin High-Speed Edge Connector) and, as a controlCARD, is ideal for initial evaluation and prototyping. For assessment of the TMDSCNCD280025C, a 180-pin docking station TMDSHSECDOCK is required and can be purchased separately or as a bundled kit.
Features
- Hardware Features
- Isolated onboard XDS100v2 USB-to-JTAG debug probe enables real-time in-system programming and debugging
- Standard 180-pin controlCARD HSEC interface
- Analog I/O, digital I/O, and JTAG signals at card interface
- Hardware Files are in C2000Ware at boards\controlCARDs\TMDSCNCD280025C
- Software Features
- Free download of Code Composer Studio IDE
- Free download of C2000Ware for device drivers and example projects
- DigitalPower SDK and powerSUITE
- MotorControl SDK
- MathWorks Embedded Target Support
- solidThinking Embed Support
- Get Started
- Install C2000Ware
- Install Code Composer Studio IDE
- Follow the F280025 controlCARD Information Guide
- Ask questions on the TI C2000 e2e forum
Kit Contents
- F280025C controlCARD
- USB cable, a male to mini B male

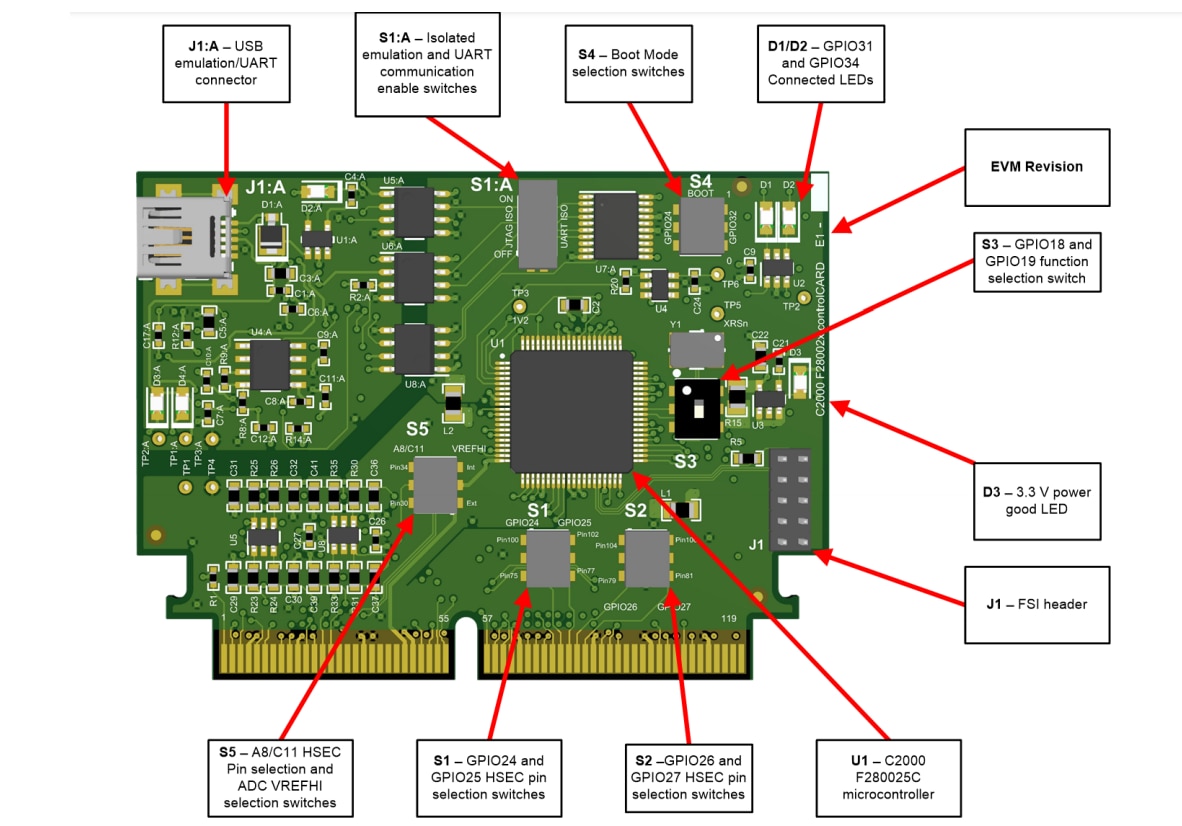

Key Components Front Diagram

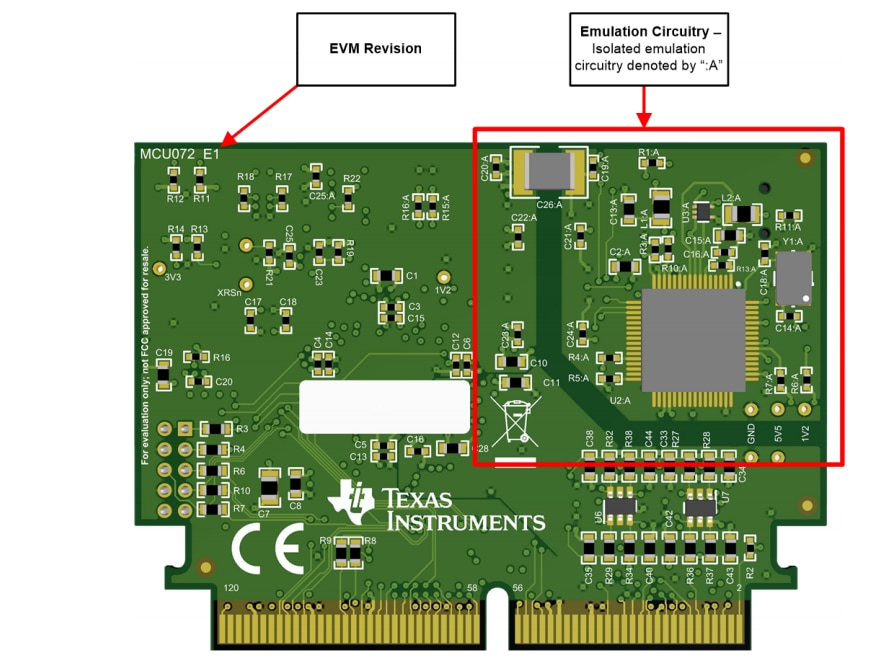

Key Components Back Diagram
Related Product
Texas Instruments TMS320F28002x/TMS320F28002x-Q1 C2000 32-Bit MCUs
Designed for efficiency in power electronics, supporting the use of GaN and SiC technologies.
Related Development Tool
Texas Instruments TMDSHSECDOCK Baseboard Docking Station
Provides header pin access to key signals on compatible HSEC180-based controlCARDs.
