Texas Instruments TMDSCNCD2800157 Evaluation Module

Texas Instruments TMDSCNCD2800157 Evaluation Module is a low-cost solution for the TI C2000™ MCU series of F280015x devices. The TMDSCNCD2800157 evaluation module includes an HSEC180 (180-pin high-speed) edge connector and, as a controlCARD, is ideal for initial evaluation and prototyping. The TI TMDSCNCD2800157 requires a TMDSHSECDOCK 180-pin docking station for evaluation that can be purchased separately.

Features

  • Isolated on-board XDS110 debug probe for real-time debug and flash programming
  • Standard 180-pin controlCARD HSEC interface
  • Analog I/O, digital I/O, and JTAG signals at the card interface
  • Hardware files are in C2000Ware at boards\controlCARDs\TMDSCNCD2800157

Software

  • TI Code Composer Studio - Integrated development environment (IDE) for TI microcontrollers and embedded processors
  • Software development kits (SDK)
    • C2000Ware SDK - Low-level device drivers, highly optimized libraries, examples, and utilities
    • MotorControl SDK - Motor control system development for various three-phase motor control applications
    • DigitalPower SDK - Digital Power system development for various AC-DC, DC-DC, and DC-AC power supply applications
    • powerSUITE - Digital power supply design software tools for C2000 MCUs

Kit Contents

  • USB Type-A male to USB Type-C™ male cable

Related Development Tool

Texas Instruments TMDSHSECDOCK Baseboard Docking Station

Provides header pin access to key signals on compatible HSEC180-based controlCARDs.

Learn Moreabout Texas Instruments TMDSHSECDOCK Baseboard Docking Station View Productsrelated to Texas Instruments TMDSHSECDOCK Baseboard Docking Station

Key Components

Texas Instruments TMDSCNCD2800157 Evaluation Module

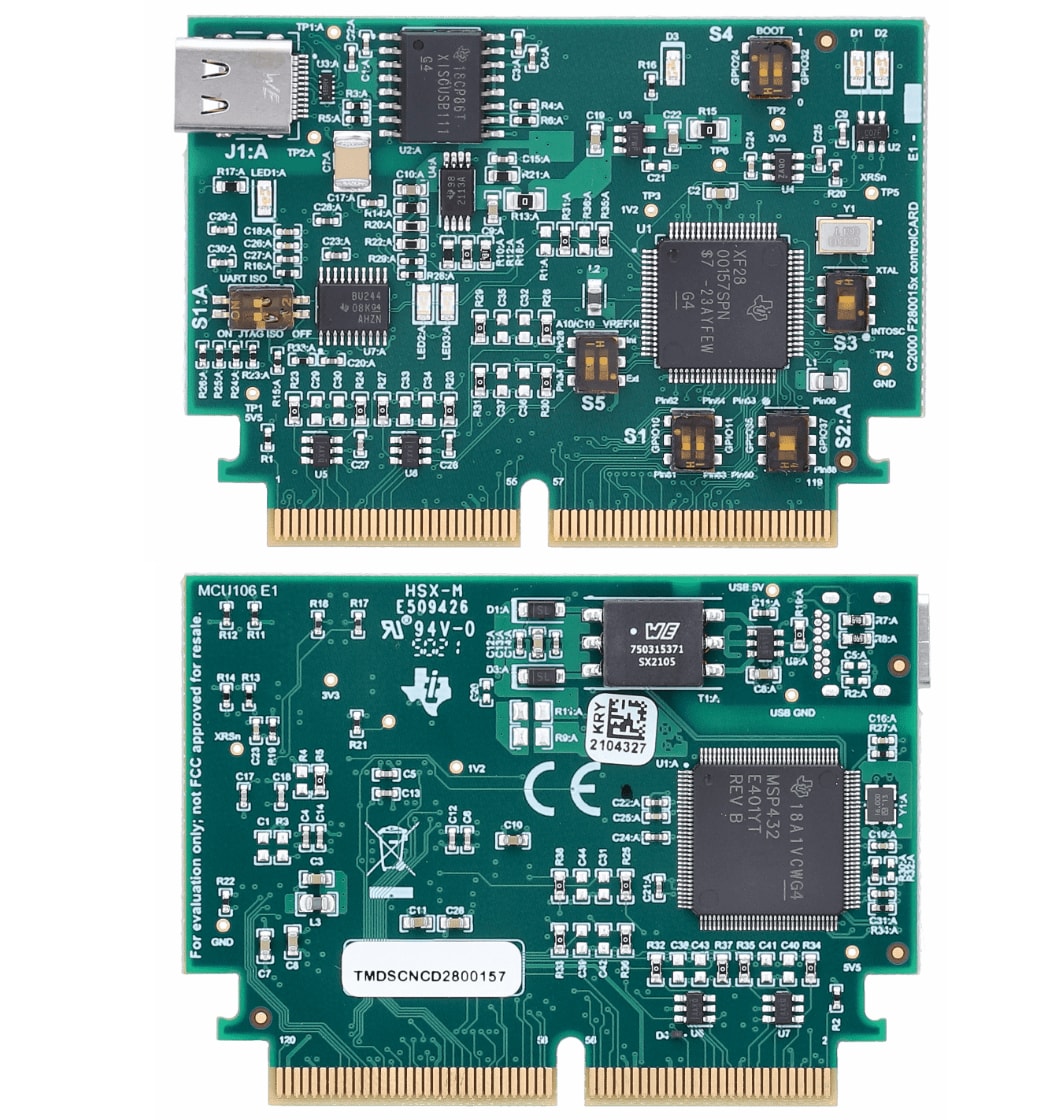

PCB Layout

Texas Instruments TMDSCNCD2800157 Evaluation Module

Related Products

Texas Instruments TMS320F280015x/TMS320F280015x-Q1 120MHz MCUs

A dual 32-bit C28x CPUs in Lockstep to achieve ASIL B functional safety device rating.

Learn Moreabout Texas Instruments TMS320F280015x/TMS320F280015x-Q1 120MHz MCUs View Productsrelated to Texas Instruments TMS320F280015x/TMS320F280015x-Q1 120MHz MCUs
