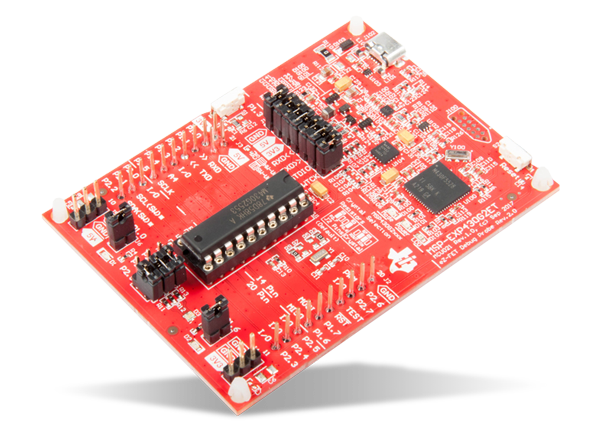

Texas Instruments MSP-EXP430G2ET Development Kit
Texas Instruments MSP-EXP430G2ET Value Line MSP430 LaunchPad™ Development Kit is a fully assembled and tested circuit for evaluating the low-power and low-cost MSP430G2x MCUs. The MSP-EXP430G2ET Development Kit features onboard emulation for programming and debugging, offering EnergyTrace™ technology. The Kit provides a 14/20-pin DIP socket, onboard buttons, LEDs, and BoosterPack™ Plug-in Module pinouts. The pinouts support a wide range of modules for added functionality such as wireless and displays.
Features
- 14-/20-pin DIP (N) Socket
- 20-pin LaunchPad standard leveraging the BoosterPack ecosystem
- Onboard EZ-FET emulator featuring EnergyTrace™ technology
- Supports MSP430G2xx2, MSP430G2xx3, and MSP430F20xx devices in PDIP14 or PDIP20 packages
- 1 user buttons and 3 LEDs for user interaction
Kit Contents
- MSP-EXP430G2ET LaunchPad Development Kit
- MSP430G2553IN20 flash device (preloaded with a sample program)
- Micro USB Cable

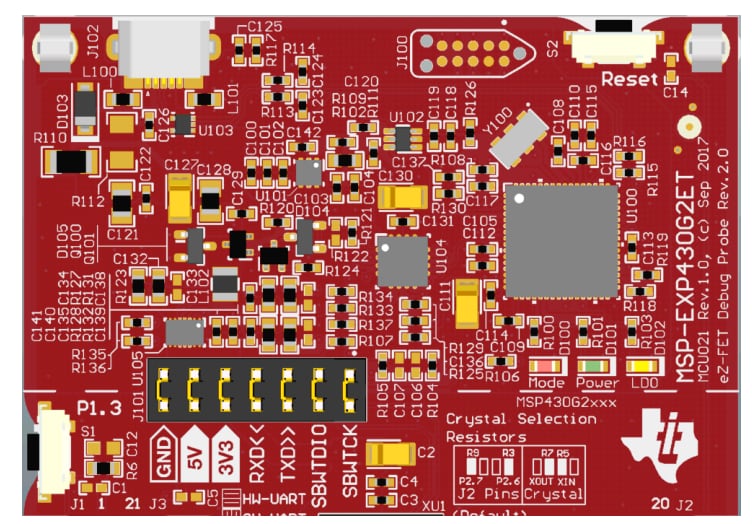

Board Layout
