Texas Instruments LEDSPIMCUEVM-879 Control Board
Texas Instruments LEDSPIMCUEVM-879 Control Board is designed for use with the TPS92518EVM-878 Board. It provides a two-channel high-brightness LED current regulator based on the TPS92518 dual-buck LED controller device.
The Texas Instruments LEDSPIMCUEVM-879 Control Board is set up for default output currents of 550mA/channel supporting any number of LEDs equal to or below the input voltage. The TPS92518 demonstration kit software package provides a computer-based graphical user interface (GUI), allowing the user to control PWM and analog dimming, adjust the off-timer, and monitor the fault reporting features.
Features
- MCU Control board for TPS92518EVM-878
- Provides complete computer (via GUI) to LED driver control
- MCU generates SPI communication and Enable and PWM dimming signals
Kit Contents
- LEDSPIMCUEVM-879
- USB Cable

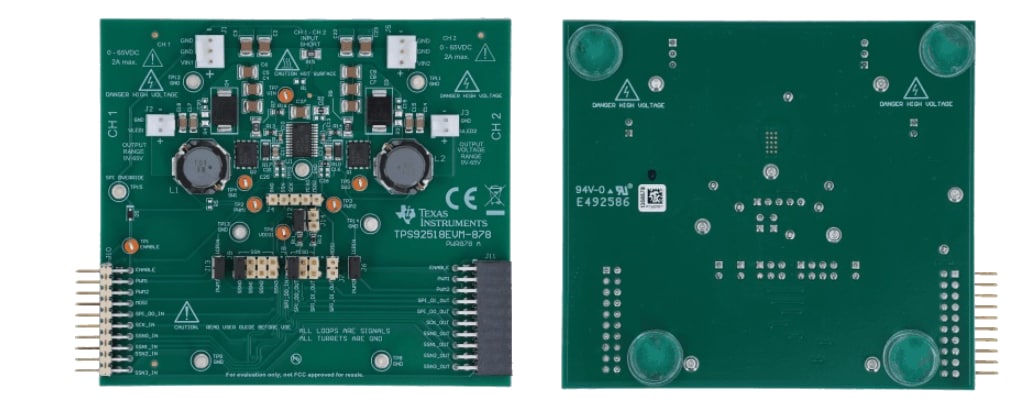

Overview
Associated Products
Texas Instruments TPS92518 Dual Buck LED Controllers
LED current controllers with an SPI interface that provides a singular communication path.
Texas Instruments TPS92518HV Dual Buck LED Controllers
Ideal for multichannel and platform lighting driver module (LDM) applications.
