Texas Instruments ADS9224REVM-PDK Evaluation Module
Texas Instruments ADS9224REVM-PDK Evaluation Module facilitates an extensive evaluation of the features and performance of the ADS9224R. The ADS9224R is a pin-compatible, high-speed, dual, simultaneous-sampling, analog-to-digital converter (ADC) with an integrated reference and reference buffer.
The Texas Instruments ADS9224REVM-PDK Evaluation Module includes the ADS9224REVM board and a precision host interface (PHI) controller board. These enable the accompanying computer software to communicate with the ADC over a universal serial bus (USB) for data capture and analysis.
Features
- Includes hardware and software required for diagnostic testing, as well as accurate performance evaluation of ADS9224R ADC USB powered; no external power supply required
- PHI controller provides a convenient communication interface to ADS9224R ADC over USB 2.0 (or higher) for power delivery, as well as digital input/output
- Easy-to-use evaluation software for Microsoft® Windows® 7/8/10 operating systems
- Software suite includes graphical tools for
- Data capture
- Histogram analysis
- Spectral analysis
- Linearity analysis
- Reference settling analysis
Kit Contents
- ADS9224R evaluation module
- PHI controller board
- USB cable

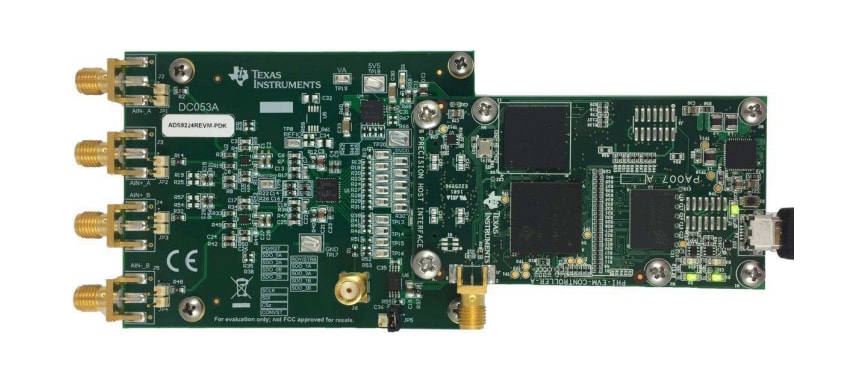

Layout
Related Product
Texas Instruments ADS92x4R Dual-Channel SAR ADCs
A pin-comp, high-speed, simultaneous-sampling with an integrated reference and reference buffer.
