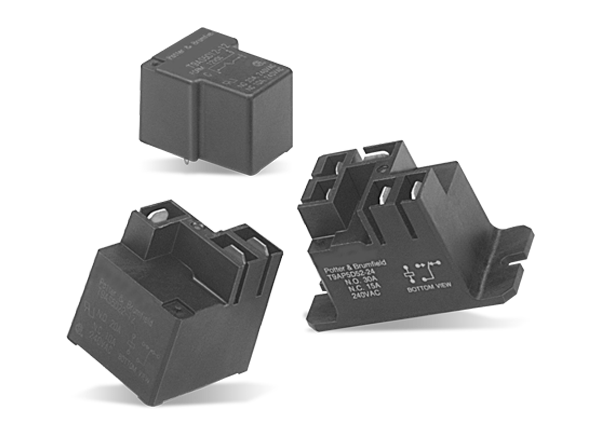

TE Connectivity T9A 30A Power Relays
TE Connectivity's (TE) T9A 30A Power Relays are DC coil PCB or panel mount relays that provide 30A switching in 1 form A (NO) and 20A in 1 form C (CO). TE's T9A relays meet UL 508 and 873 spacing (3.18mm through air, 6.36mm over surface) and meet UL class F insulation system standards. Typical applications include HVAC, appliances, and industrial controls.
Features
- 30A switching in 1 form A (NO) and 20A in 1 form C (CO)
- Plastic sealed case available
- Meets UL 508 and 873 spacing - 3.18mm through air, 6.36mm over surface
- Option for load connections via 6.35mm Q.C. terminals
- UL class F insulation system standard
Applications
- HVAC
- Appliances
- Industrial controls
Dimensions
View All Relays
TE Connectivity Relays & Contactors
Broad range of relays and contactors for switching signal-level loads.
View Results ( 54 ) Page
| Dalies Numeris | Duomenų Lapas | Aprašymas | Ritės Įtampa |
|---|---|---|---|
| T9AS1D17-12 |  |
General Purpose Relays T9AS1D17-12 | 12 VDC |
| T9AS1D22-48 | |
General Purpose Relays SPST-NO 30A 48VDC POWER RELAY | 48 VDC |
| T9AS1D22-22 | |
General Purpose Relays SPST-NO 30A 22VDC POWER RELAY | 22 VDC |
| T9AV1D22-48 | |
General Purpose Relays 30A, 48VDC 1 Form A(NO) PCB MNT | 48 VDC |
| T9AS5D12-110 | |
General Purpose Relays SPDT 20A 110VDC POWER RELAY | 110 VDC |
| T9AS5D12-22 | |
General Purpose Relays SPDT 20A 22VDC POWER RELAY | 22 VDC |
| T9AS5D22-12 | |
General Purpose Relays SPDT PC MOUNT 12VDC | 12 VDC |
| T9AV1D12-22 | |
General Purpose Relays SPST-NO 22VDC | 22 VDC |
| T9AS5L22-12 | |
General Purpose Relays Industrial Relays (General Purpose) | 12 VDC |
| T9AS1D12-22 | |
General Purpose Relays SPST-NO 30A 22VDC POWER RELAY | 22 VDC |
