STMicroelectronics Low-Power Dual Operational Amplifiers

STMicroelectronics Low-Power Dual Operational Amplifiers consist of two independent, high-gain, internally frequency-compensated op-amps, specifically designed to operate from a single power supply over a wide range of voltages. These Low-Power Dual Operational Amplifiers have a low-power supply drain and is independent of the magnitude of the power supply voltage. Applications for these STMicroelectronics Low-Power Dual Operational Amplifiers include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits, which can now be more easily implemented in single power supply systems.

Features

  • Internally frequency-compensated
  • Large DC voltage gain: 100dB
  • Wide bandwidth (unity gain): 1.1MHz (temperature compensated)
  • Very low supply current per operator essentially independent of supply voltage
  • Low input bias current: 20nA (temperature compensated)
  • Low input offset voltage: 2mV
  • Low input offset current: 2nA
  • Input common-mode voltage range includes negative rails
  • Differential input voltage range equal to the power supply voltage
  • Large output voltage swing 0V to (VCC ± 1.5V)

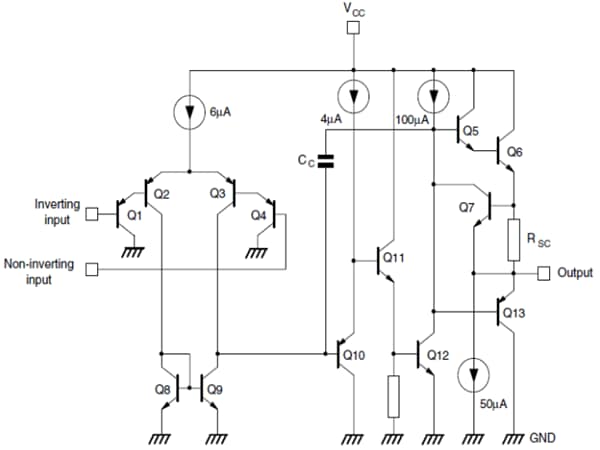

Schematic Diagram (1/2 LM158)

Schematic - STMicroelectronics Low-Power Dual Operational Amplifiers

Complete Your Design

STMicroelectronics Standard Products

A broad range of drop-in replacements for general-purpose analog ICs, discretes, and serial EEPROMs.

Learn Moreabout STMicroelectronics Standard Products View Productsrelated to STMicroelectronics Standard Products
View Results ( 14 ) Page
Dalies Numeris Duomenų Lapas Pakuotė / Korpusas Vieno Kanalo Išėjimo Srovė Kanalų skaičius GBP – pralaidumo didinimo produktas SR - Apsukų Greitis CMRR - Bendras mode atmetimo santykis svar. – įvesties tendencingumo srovė Vos - įvesties poslinkio įtampa Darbinė Maitinimo Srovė PSRR – maitinimo šaltinio malšinimo faktorius Technologijos
LM358ST LM358ST Duomenų Lapas MiniSO-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 150 nA 7 mV 1.2 mA 65 dB Bipolar
LM358APT LM358APT Duomenų Lapas TSSOP-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 50 nA 3 mV 1.2 mA 65 dB Bipolar
LM258ADT LM258ADT Duomenų Lapas SOIC-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 50 nA 3 mV 1.2 mA 65 dB Bipolar
LM258QT LM258QT Duomenų Lapas DFN-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 150 nA 5 mV 700 uA 100 dB
LM358WST LM358WST Duomenų Lapas MiniSO-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 150 nA 7 mV 700 uA 100 dB
LM158DT LM158DT Duomenų Lapas SOIC-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 150 nA 5 mV 1.2 mA 65 dB Bipolar
LM258AST LM258AST Duomenų Lapas MiniSO-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 50 nA 3 mV 1.2 mA Bipolar
LM258PT LM258PT Duomenų Lapas TSSOP-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 150 nA 5 mV 1.2 mA 65 dB Bipolar
LM358ADT LM358ADT Duomenų Lapas SOIC-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 50 nA 3 mV 1.2 mA 65 dB Bipolar
LM358AST LM358AST Duomenų Lapas MiniSO-8 40 mA 2 Channel 1.1 MHz 600 mV/us 85 dB 50 nA 3 mV 1.2 mA 65 dB Bipolar
Paskelbta: 2012-03-09 | Atnaujinta: 2022-03-11
