STMicroelectronics LDK120P DFN-6L Low Dropout Voltage Regulators
STMicroelectronics LDK120P DFN-6L Low Dropout (LDO) Voltage Regulators provide 200mA of maximum current from an input supply voltage in the range of 1.9V to 5.5V, with a typical dropout voltage of 100mV. They are stabilized with a ceramic capacitor on the output. The very low drop voltage, low quiescent current, and low noise features make these devices suitable for low power battery-powered applications. An enable logic control function puts the LDK120P LDOs in shutdown mode allowing a total current consumption lower than 1μA. These devices also include a short-circuit constant current limiting and thermal protection.
Features
- Input voltage from 1.9V to 5.5V
- Very low dropout voltage (100mV typ. at 100mA load)
- Low quiescent current (max. 100μA, 1μA in OFF mode)
- Very low noise
- Output voltage tolerance: ± 2.0% @ 25°C
- Wide range of fixed output voltages available on request: from 0.8V to 3.5V with 100mV step
- 200mA guaranteed output current
- Adjustable version: from 0.8V to VIN to Vdrop
- Logic-controlled electronic shutdown
- Compatible with ceramic capacitor COUT = 1μF
- Internal current and thermal limit
- Temperature range: -40°C to +125°C
Applications
- Smartphones
- Tablets
- Cordless phones and similar battery-powered systems
- Digital still cameras
Related Products
STMicroelectronics Low Dropout (LDO) Regulators
Delivers a stable and regulated output voltage.
STMicroelectronics LDK120C SOT-323-5L Low Dropout Voltage Regulators
Provides 200mA of maximum current from an input supply voltage in the range of 1.9V to 5.5V.
STMicroelectronics LDK120M SOT-23-5L Low Dropout Voltage Regulators
Provides 200mA of maximum current from an input supply voltage in the range of 1.9V to 5.5V.
STMicroelectronics LD39130S High Accuracy Voltage Regulators
Feature low drop voltage, low quiescent current, and low noise.
STMicroelectronics LDF & LDFM Very Low Drop Voltage Regulators
Operates from an input supply voltage in the range of 2.5V to 16V.
STMicroelectronics LDK130C SOT-323-5L Low Dropout Voltage Regulators
300mA of current from an input supply voltage in the range of 1.9V to 5.5V in a SOT-323-5L package.
STMicroelectronics LDK130M SOT-23-5L Low Drop Voltage Regulators
Provides 300mA of maximum current from an input supply voltage in the range of 1.9V to 5.5V.
STMicroelectronics LDK130P DFN-6L Low Drop Voltage Regulators
300mA of max current from an input supply voltage in the range of 1.9V to 5.5V in a DFN-6L package.

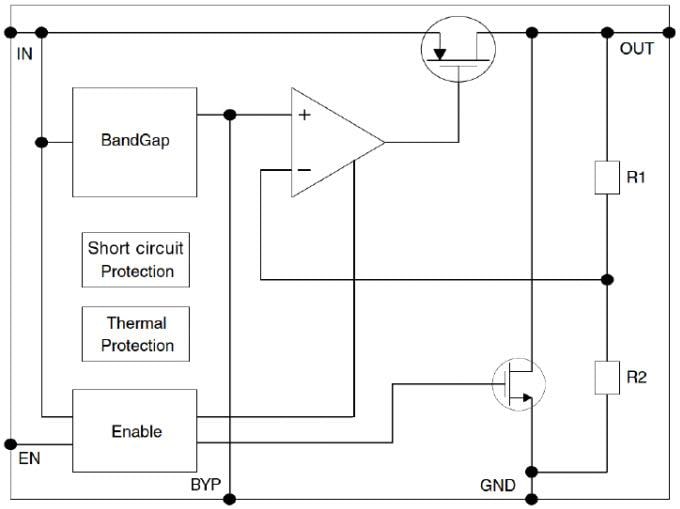

Block Diagram
