Semtech GS2971A Evaluation Kit
Semtech GS2971A Evaluation Kit is designed for the GS2971A, GS2961A, and GS2988 receivers. The GS2971A is a 3G/HD/SD-SDI receiver with EQ and audio. The GS2961A is a 3G/HD/SD-SDI receiver with EQ and no audio. The GS2988 is a 3G CD receiver individually.
The Semtech GS2971A Evaluation Kit features GUI control thru a USB dongle, audio (AES or I2S) 8-channel output, serial-parallel with SMPTE de-scramble, and loop thru output.
Features
- GUI Control (Thru USB dongle)
- Audio (AES or I2S) 8-ch output
- Serial – Parallel with SMPTE descramble
- Loop thru output

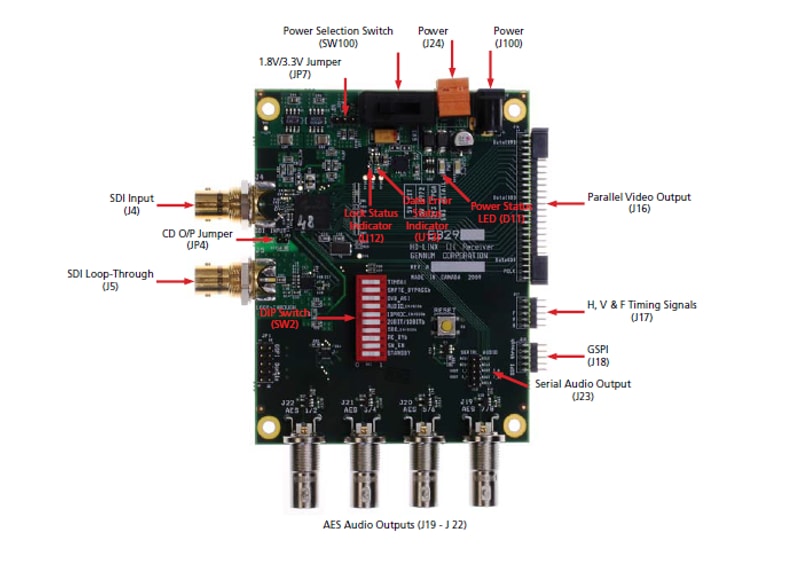

Output Diagram
Block Diagram
