ScioSense UFC ST Nucleo Shields Expansion Boards
ScioSense UFC ST Nucleo Shields Expansion Boards can easily be combined with ST development kits and ScioSense evaluation kits. The boards feature two rows of connectors that fit into the ST Nucleo boards. An additional connector is available to use with the PICOPROG interface. Shields are available for TDC-GP30YA-F01 (with flow firmware), AS6031, and AS6040.
Features
- Can easily be combined with the ST development kits and the ScioSense evaluation kits in combination with the UFC Evaluation Software package
- The boards have two rows of connectors that fit into the ST Nucleo boards and an additional connector to the PICOPROG interface
- Shields are available for TDC-GP30YA-F01 (with flow firmware), AS6031, and AS6040

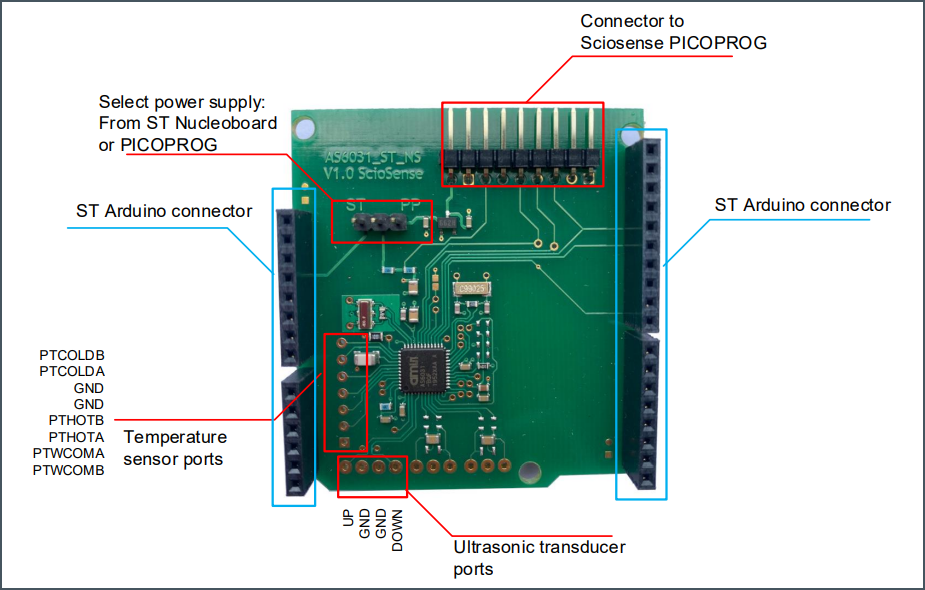

Board Layout
Related Products
ScioSense AS6031 Development Tools
Used for quick and easy start-up and evaluation of the AS6031 ultrasonic flow converter (UFC).
ScioSense AS6031 SoC for Ultrasonic Flow Meters
Ultrasonic flow converter for the next generations of ultrasonic water and heat meters.
ScioSense AS6040 Development Tools
Used for quick and easy start-up and evaluation of the AS6040 ultrasonic flow converter (UFC).
ScioSense AS6040 Ultrasonic Flow Meter for Gas Meters
Solution dedicated to gas meters and suitable for water meters as well, made of four major blocks.
ScioSense GP30 Standard Board
Used for quick start-up and evaluation of the TDC-GP30 and TDC-GP30-F01 ultrasonic flow converters.
View Results ( 10 ) Page
| Dalies Numeris | Duomenų Lapas | Aprašymas |
|---|---|---|
| AS6031-BQFM |  |
Jutiklis Interface Ultrasonic flow converter with PGA & CPU |
| AS6031-QF_DK | |
Daugiafunkcinių Jutiklių Kūrimo Įrankiai AS6031 Development kit |
| AS6031-QF_DK_RB | |
Daugiafunkcinių Jutiklių Kūrimo Įrankiai AS6031 Reference board |
| AS6040-QF_DK_RB | |
Daugiafunkcinių Jutiklių Kūrimo Įrankiai AS6040 Reference board |
| GP30YA-F01_ST_NS V1.0 | |
Daugiafunkcinių Jutiklių Kūrimo Įrankiai TDC-GP30YA-F01 Nucleo shield |
| AS6040-BQFM | |
Jutiklis Interface Ultrasonic flow converter with HV AFE & CPU |
| AS6040-QF_DK | |
Daugiafunkcinių Jutiklių Kūrimo Įrankiai AS6040 Development kit |
| AS6031_ST_NS V1.0 | |
Daugiafunkcinių Jutiklių Kūrimo Įrankiai AS6031 Nucleo shield |
| AS6040_ST_NS V1.0 | |
Daugiafunkcinių Jutiklių Kūrimo Įrankiai AS6040 Nucleo shield |
| TDC-GP30YA-F01 3K | |
Jutiklis Interface Ultrasonic flow converter with CPU & flow firmware in QFN40 |
