Renesas Electronics ZSSC4132 Automotive Sensor Signal Conditioner
Renesas Electronics ZSSC4132 Automotive Sensor Signal Conditioner (SSC) is designed to provide highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The AEC-Q100-qualified ZSSC4132 is optimized for automotive applications and is compatible with all resistive pressure sensing technologies.
Features
- Compatible with all resistive pressure sensing technologies
- Embedded diagnostic features
- Over-voltage and short circuit protection
- Temperature sensors PTC/NTC/D/BRTC
- LIN interface for end-of-line calibration
- LIN 2.x and 1.3 compatibility
- Slave node position detection (SNPD) support
- Robust power management & EMC
- AEC-Q100 Grade 0
Applications
- HVAC (Heating, Ventilation, and Air Conditioning) systems in PHEVs (Plug-in Hybrid Electric Vehicles) and FCEVs (Fuel Cell Electric Vehicles)
- Seat and door module systems
- Supporting all HVAC coolant media, including CO2
- Fluid level sensing
Related Products
Renesas Electronics Automotive Sensors
A portfolio of sensor solutions designed for automotive applications.
Development Tools
Renesas Electronics ZSSC4132KIT Evaluation Kit
Complete hardware platform for the configuration, calibration, and evaluation of the ZSSC4132 SSC.
Block Diagram

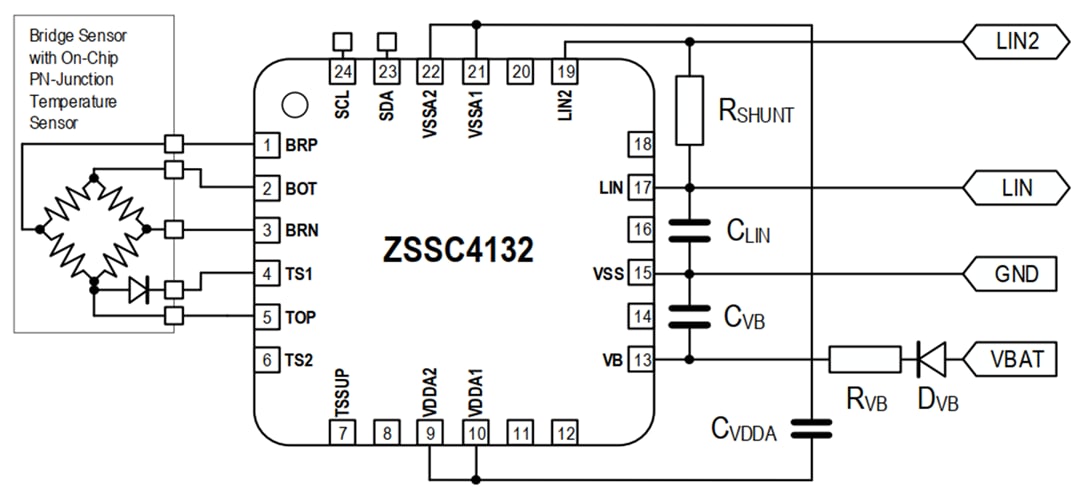

Typical Application Circuit
Paskelbta: 2020-06-09
| Atnaujinta: 2023-06-20
