Renesas Electronics IP Gateway for HVAC Systems
Renesas Electronics IP Gateway for HVAC Systems is an optional bridge to the Intranet or the Internet for all sensor and/or control data. HTTPS or MQTT (among other options) can be used for secure protocol requirements. Multiple PHYs could also be used, such as Wi-Fi based on IEEE 802.11; Thread, Zigbee, or 6LoWPAN based on IEEE 802.15.4; Ethernet based on IEEE 802.3; LTE-M/-NB (depending on the geographical region and available providers); and LoRaWAN.
Features
- Bluetooth® 5 mesh communication enables communication with other sensors and actuators
- The IP gateway function could either be a separate device or integrated into the actuator(s)
- For the power supply, usually, mains will be needed for the fan/HVAC (e.g., 230VAC or 110Va, or 24VDC) from the building control system

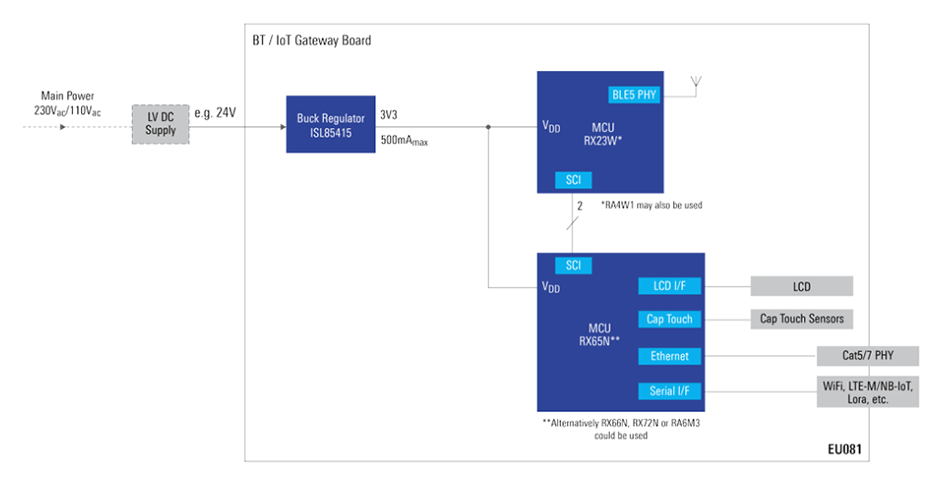

System Block Diagram
Featured Products
Renesas Electronics RX23W 32-bit Microcontrollers
32-bit RXv2 core microcontroller with integrated wireless BLUETOOTH® 5.0 (BT5) connectivity.
Renesas Electronics RX600 32-bit Microcontrollers
32-bit MCUs optimized for applications requiring high-performance, high-efficiency processors.
Renesas Electronics ISL85415 Switching Regulator
Wide voltage input range, 500mA output current provides a flexible and dependable design solution.
Additional Application Solutions
See how Renesas' complementary product portfolios of Analog + Power + Embedded Processing work together to deliver comprehensive solutions.
