OTTO T4 Series 4-Way Mini Trims

OTTO T4 Series 4-Way Mini Trims are Commercial- and military-grade, sealed T4 mini trims that are single-pole, 4-throw, center off, and momentary contact (self-return-to-center off) switches. These devices are available with numerous button styles. The Mini trims are typically press-fit into control grips or panel mounted using versions with an 11/16" threaded case. The OTTO mini trims include T1 2-way models, T2 large 2-way models with toggle and pushbutton action, and T5 4-way plus center pushbutton models. These T4 series mini trims are ideal for industrial, defense, aerospace, and commercial aviation applications.

Features

  • Commercial- and military-grade models
  • Variety of button styles
  • Standard and low-level switching
  • IP64 or IP68S per MIL-PRF-8805 design 3
  • Press fit or threaded case styles
  • MIL-qualified options per M9419/2

Applications

  • Industrial
  • Defense
  • Aerospace
  • Commercial aviation

Specifications

  • Materials:
    • Aluminum alloy or thermoplastic case
    • Thermoplastic button
    • Silver over brass, brass with gold over silver for low-level terminals
  • Electrical life up to 100,000 cycles 1A inductive @28VDC
  • -55°C to 85°C operating temperature range
  • 16oz ± 6oz actuating force

Dimensions

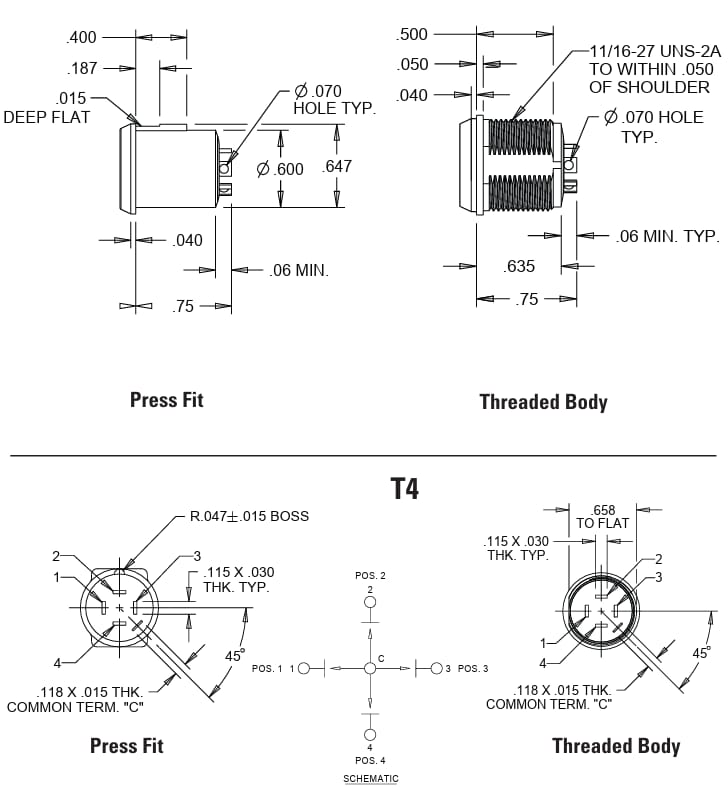

Mechanical Drawing - OTTO T4 Series 4-Way Mini Trims

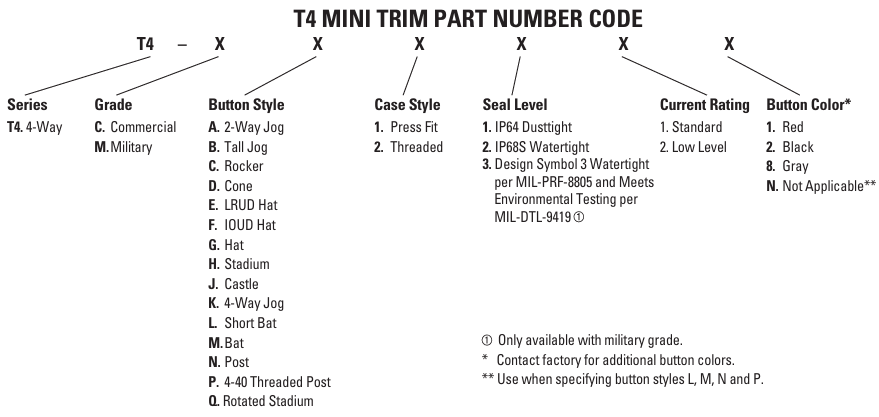

Part Number Code

OTTO T4 Series 4-Way Mini Trims

Mini Trims

OTTO Mini Trim Switches

Available features include actuation, mounting, circuitry, button styles, and colors.

Learn Moreabout OTTO Mini Trim Switches View Productsrelated to OTTO Mini Trim Switches
View Results ( 163 ) Page
Dalies Numeris Duomenų Lapas Dabartinė klasė IP Reitingas
T4-TME4332 T4-TME4332 Duomenų Lapas 2 A IP68S
T4-CG1112 T4-CG1112 Duomenų Lapas 10 mA IP64
T4-0098 T4-0098 Duomenų Lapas
T4-TCE3332 T4-TCE3332 Duomenų Lapas 2 A IP68S
T4-TCM3332 T4-TCM3332 Duomenų Lapas 2 A IP68S
T4-CM211N T4-CM211N Duomenų Lapas 10 mA IP64
T4-MJ2312 T4-MJ2312 Duomenų Lapas 10 mA IP68S
T4-TMJ3328 T4-TMJ3328 Duomenų Lapas 10 mA IP68S
T4-CH2222 T4-CH2222 Duomenų Lapas 10 mA IP68S
T4-CJ1222 T4-CJ1222 Duomenų Lapas 10 mA IP68S
