Orion Fans FANCLIP Mounting Clips for Fans with 4mm Holes
Orion Fans FANCLIP Mounting Clips for Fans with 4mm Holes are compatible for use with flange-type fan frames. These mounting clips offer a 6in/lbs maximum torque. The FANCLIP-4MM mounting clips are made of SK-5 steel with 0.4mm thickness available in a black finish with rust inhibitor. These mounting clips come in a 3mm to 6mm fan flange thickness range and a ∅4.0 to 4.5mm fan hole size range. The FANCLIP-4MM fan mounting clips are RoHS compliant.
Features
- Compatible for use with flange-type fan frames
- Not compatible with ribbed fan frames
- SK-5 steel, 0.4mm thickness, black finish with rust inhibitor material
- #6-32 UNC screw compatibility
- 6in/lbs. maximum torque
- ∅4.0 to 4.5mm fan hole size range
- 3mm to 6mm fan flange thickness range
- RoHS compliant

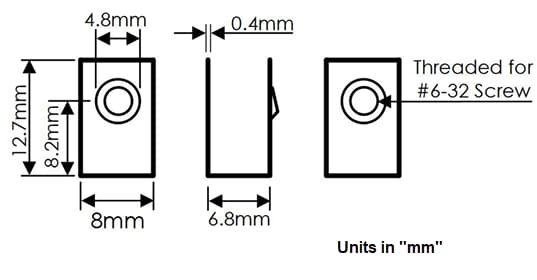

Dimensions
Related Product
Orion Fans RFI Series Rubber Fan Isolators for Axial Fans
Designed to dampen the vibration of the fan that it’s mounted to, allowing for quieter operation.
