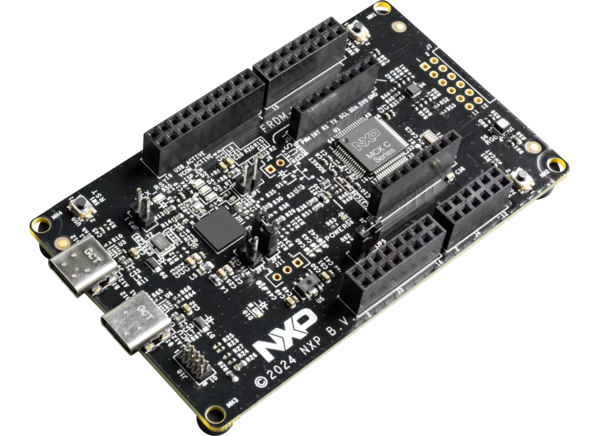

NXP Semiconductors FRDM-MCXC242 Development Board

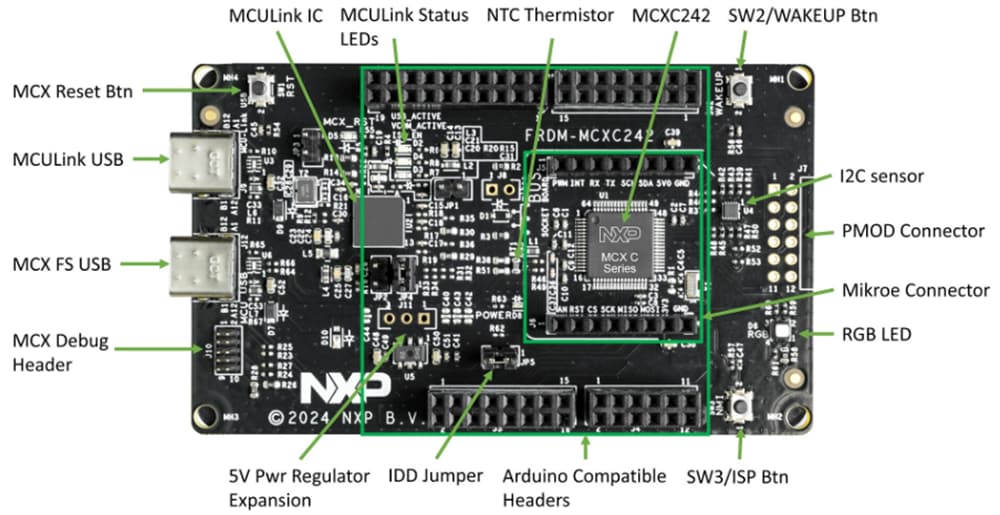

NXP Semiconductors FRDM-MCXC242 Development Board is designed for rapid prototyping with the MCX C242 MCU. The NXP Semiconductors FRDM-MCXC242 features standard headers for easy access to the MCU’s I/Os, integrated serial interfaces, and an onboard MCU-Link debugger. Additional resources, including an Expansion Board Hub for add-ons and the Application Code Hub for software examples, are available through the MCUXpresso Developer Experience.

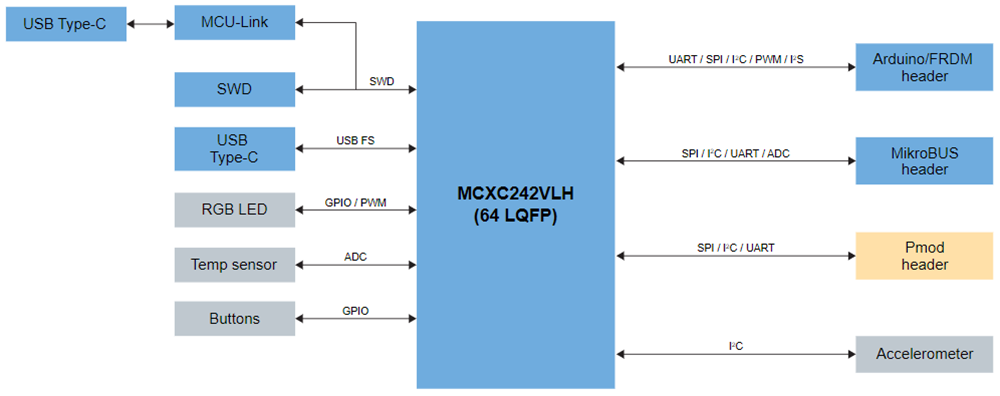

Features

MCXC242 Arm® Cortex®-M0+ core at 48MHz with optimized performance efficiency, up to 64KB flash, and 16KB RAM
Connectivity
- FS USB Type-C™ connector
- SPI/I²C/UART connector (mikroBUS™, Pmod™ DNP)
- Wi-Fi connector (mikroBUS, Pmod DNP)
Debug
- Onboard MCU-Link debugger with CMSIS-DAP
- SWD connector

Sensor
- FXLS8974CFR3 3-axis accelerometer
- NTC temperature sensor
Expansion options
- Arduino® header
- FRDM header
- Pmod DNP
- mikroBUS
RGB user LED, Reset, ISP, wake-up buttons user interface

Applications

Industrial
- Air Conditioning (AC)
- Brushless DC motor (BLDC) control
- Electricity meters
- Industrial HMI
- Motor drives
- Permanent Magnet Synchronous Motor (PMSM)
- Vital sign monitors
