NKK Switches AT300x Knobs
NKK Switches AT300x Knobs are designed for use with the NR01 Series Sealed Rotary Switches. These knobs are available with and without flanges and come in a black, red, and gray color variants. In order to avoid disassembling of the knobs from the switches, it is advisable to use the knobs with the flanges.
Features
- Designed for use with the NR01 Series Sealed Rotary Switches
- Glass fiber reinforced polyamide material
- Available with (9.5mm) or without (7.5mm) flange
- Available in black, red, or gray
Associated Product
NKK Switches NR01 Series Sealed Rotary Switches
Subminiature rotary switches with sliding dual-contact mechanism and available up to 5 positions.

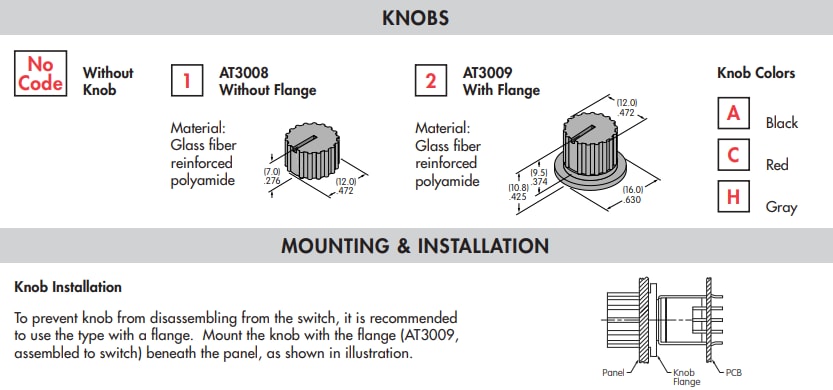

Knobs Dimensions
View Results ( 36 ) Page
| Dalies Numeris | Duomenų Lapas | Aukštis | Spalva | Skirta naudoti su |
|---|---|---|---|---|
| AT3008A |  |
7 mm | Black | NR01 Series |
| AT3008C | |
7 mm | Red | NR01 Series |
| AT3008H | |
7 mm | Gray | NR01 Series |
| AT3001CB | |
12.2 mm | Red, Black | Pushbutton Switches |
| AT3001EB | |
12.2 mm | Yellow, White | Pushbutton Switches |
| AT3001FB | |
12.2 mm | Green, White | Pushbutton Switches |
| AT3002A | |
12.2 mm | Black | Pushbutton Switches |
| AT3002CB | |
12.2 mm | Red, White | Pushbutton Switches |
| AT3002EB | |
12.2 mm | Yellow, White | Pushbutton Switches |
| AT3002GB | |
12.2 mm | Blue, White | Pushbutton Switches |
Paskelbta: 2017-08-17
| Atnaujinta: 2022-07-14
