Nexperia PBSSxx50PAS/PBSSxx50PAS-Q Transistors
Nexperia PBSSxx50PAS/PBSSxx50PAS-Q Low VCEsat Transistors provide low collector-emitter saturation voltage and high collector current capability. The PBSSxx50PAS/PBSSxx50PAS-Q Transistors offer higher efficiency, resulting in less heat generation. The low VCEsat transistors are available in a DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
Features
- DFN2020D-3 (SOT1061D) package
- Low collector-emitter saturation voltage VCEsat
- High collector current capability with IC and ICM
- Higher efficiency leads to less heat generation
- Reduced printed-circuit board requirements
- Leadless small SMD plastic package with solderable side pads
- Exposed heat sink for excellent thermal and electrical conductivity
- Suitable for Automatic Optical Inspection (AOI) of solder joint
- Qualified according to AEC-Q101 and recommended for use in automotive applications (PBSSxx50PAS-Q)
Applications
- Load switch
- Battery-driven devices
- Power management
- Charging circuits
- Power switches (e.g., motors, fans)

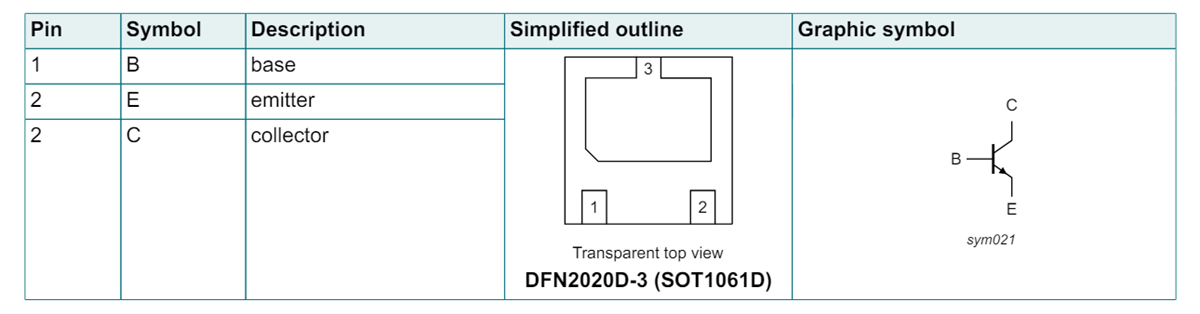

Typical Application
