Monolithic Power Systems (MPS) MPQ4415M Step-Down Converter
Monolithic Power Systems (MPS) MPQ4415M Step-Down Converter is a high-frequency, synchronous, rectified, switch-mode converter with built-in power MOSFETs. The device features 1.5A continuous load current and high-efficiency synchronous mode operation. Protection features include overcurrent (OCP) and thermal shutdown. The MPQ4415M is available in a compact QFN-13 (2.5mm x 3mm) package. Applications for MPS MPQ4415M Step-Down Converter include automotive, industrial control systems, medical and imaging equipment, telecom, and distributed power systems.
Features
- EMI reduction technique
- Wide 4V to 36V operating input range
- 1.5A continuous load current
- 90mO/50mO low RDS(ON) internal power MOSFETs
- High-efficiency synchronous mode operation
- Default 2.2MHz switching frequency
- 450kHz to 2.2MHz frequency sync
- Output adjustable from 0.8V
Applications
- Automotive
- Industrial control systems
- Medical and imaging equipment
- Telecom
- Distributed power systems

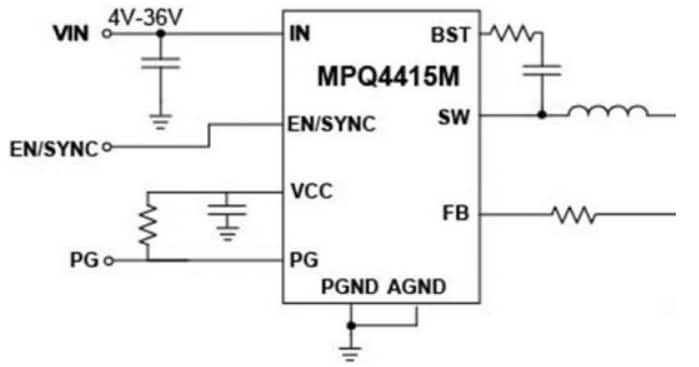

Block Diagram
