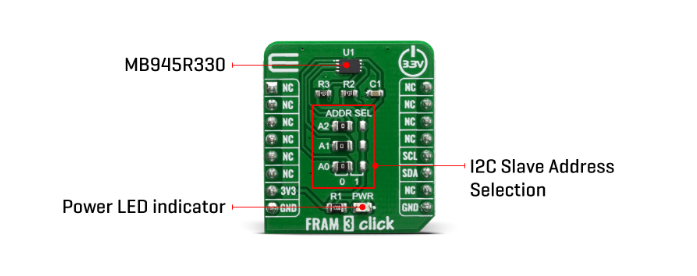

Mikroe FRAM 3 Click
Mikroe FRAM 3 Click carries a ferroelectric RAM (FRAM) module, a non-volatile memory type comparable to much faster DRAM memory modules. The Mikroe click offers a much faster alternative to common serial FLASH and EEPROM modules. FRAM 3 click uses the Fujitsu Semiconductor LTD MB94R330 serial FRAM module. FRAM embedded IC is proven utility in security applications like IC cards.
Features
- Fujitsu Semiconductor LTD MB945R330 serial FRAM module
- Free access area 112bytes, Resource counter area 4bytes x 8 slot, ID area 8bytes x 4 slot
- I2C interface
- mikroBUS compatibility
- S (28.6mm x 25.4mm) click board size
- 3.3V input voltage
Applications
- Detecting cloned peripherals and accessories which is used in electric equipment like a printer, multifunction printer
