Matrix Orbital EVE2 G Series Displays

Matrix Orbital EVE2 G Series Displays are an advanced embedded video engine integrated full-color TFT capacitive touchscreen. These EVE2 displays use FTDI FT813 EVE Bridgetek's second-generation embedded vision engine that enables visualization and control of complex graphics on the full-color TFT touchscreen. The EVE2 G series displays offer 1MB of graphics RAM providing video playback for motion-JPEG encoded AVI videos in both portrait and landscape mode. These TFT displays interface through SPI mode of communication, making EVE2 highly compatible with many microcontrollers. The EVE2 G series TFT displays are available in 3.5inch to 7inch display options.

The Matrix Orbital EVE2 G Series displays data through widgets such as gauges, spinners, sliders, and bar graphs. The touchscreen of the EVE2 G series features added touch control hardware, tracking of touch movement, and notification for up to 255 touch objects. The EVE2 G Series displays include a built-in sound synthesizer and a digital filter that supports mono 8-bit linear audio playback at 8kHz to 48kHz sampling frequencies. These TFT displays come with a backlight driver and integrated backlight control circuit. Typical applications include the development of high-quality human-machine interfaces, support of multiple widgets, and graphics operation.

Features

  • Advanced embedded video engine with high-resolution graphics and video playback
  • Support multiple widgets for simplified design development
  • Support for capacitive touchscreen technology
  • Support capacitive touch screen with up to 5 touches detection
  • Data enable mode or VSYNC/HSYNC mode
  • Support landscape and portrait orientations
  • Support playback of motion-JPEG encoded AVI videos
  • -20°C to 70°C extended operating temperature range

Block Diagram

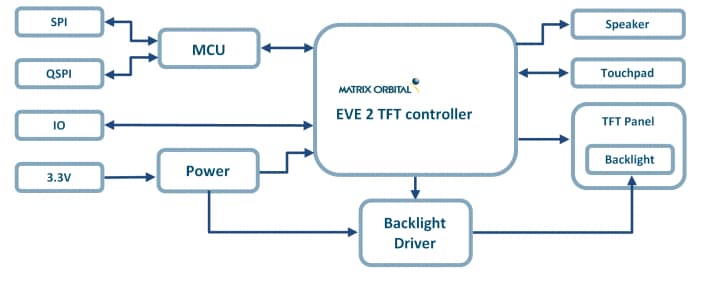

Block Diagram - Matrix Orbital EVE2 G Series Displays

Videos

View Results ( 4 ) Page
Dalies Numeris Duomenų Lapas Aprašymas Žiūrėjimo plotas - plotis x aukštis Display Skiriamoji geba - pikseliai Įstrižainė Modulio dydis - W x H x T
EVE2-70G-BLM-TPC EVE2-70G-BLM-TPC Duomenų Lapas TFT Ekranai ir Priedai 7 in PCAP G Series 154.84 mm x 86.63 mm 800 x 480 7 in 164.9 mm x 100 mm x 3.5 mm
EVE2-35G-BLM-TPC EVE2-35G-BLM-TPC Duomenų Lapas TFT Ekranai ir Priedai 3.5 in PCAP G Series 71.08 mm x 53.56 mm 320 x 240 3.5 in 76.9 mm x 63.9 mm x 3.2 mm
EVE2-43G-BLM-TPC EVE2-43G-BLM-TPC Duomenų Lapas TFT Ekranai ir Priedai 4.3 in PCAP G Series 96.36 mm x 55.7 mm 480 x 272 4.3 in 105.4 mm x 67.1 mm x 2.95 mm
EVE2-50G-BLM-TPC EVE2-50G-BLM-TPC Duomenų Lapas TFT Ekranai ir Priedai 5 in PCAP G Series 109.7 mm x 66.4 mm 800 x 480 5 in 120.7 mm x 75.8 mm x 2.8 mm
Paskelbta: 2018-07-13 | Atnaujinta: 2022-08-15
