IXYS X3-Class HiPerFET™ Power MOSFETs
IXYS X3-Class HiPerFET™ Power MOSFETs are N-channel, enhancement mode, avalanche-rated MOSFETs. The X3-Class provides high power density and is easy to mount, all in a space-saving package. The IXYS X3-Class MOSFETs are ideal for switch-mode and resonant-mode power supplies.
Features
- International standard package
- Low RDS(ON) and QG
- Avalanche rated
- Low package inductance
Applications
- Switch-mode and resonant-mode power supplies
- DC-DC converters
- PFC circuits
- AC and DC motor drives
- Robotics and servo controls
Associated MOSFETs
IXYS X-Class Power MOSFETs
Easy-to-mount high-power density N-Channel Enhancement Mode MOSFETs with a low RDS(ON) and QG.
IXYS X3-Class Power MOSFETs with HiPerFET™
Avalanche-rated fast intrinsic diodes with N-channel enhancement mode.
IXYS HiPerFET™ Power MOSFETs
High-current HiPerFET™ power MOSFETs for hard switching & resonant mode applications.

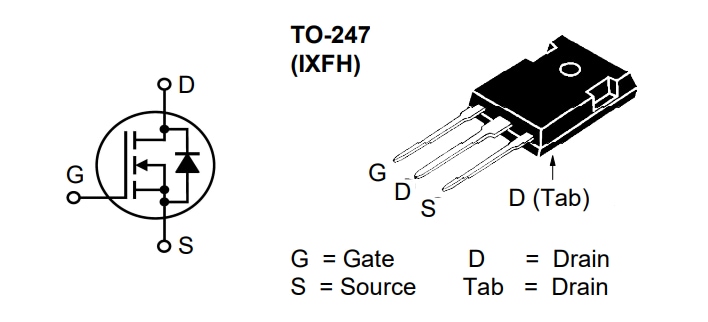

TO-247 (IXFH) Package Style

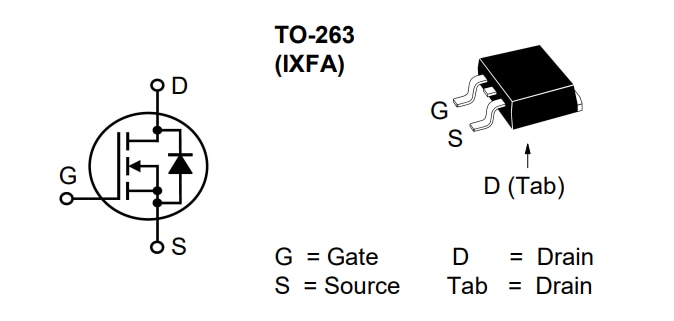

TO-263 (IXFA) Package Style
View Results ( 7 ) Page
| Dalies Numeris | Duomenų Lapas | svar. – nuolatinio išleidimo srovė | RDS On - Drain-Source Varža | Qg – vartų krūvis | Pd - skaidos galia |
|---|---|---|---|---|---|
| IXFA34N65X3 |  |
34 A | 100 mOhms | 29 nC | 446 W |
| IXFP34N65X3 | |
34 A | 100 mOhms | 29 nC | 446 W |
| IXFH54N65X3 | |
54 A | 59 mOhms | 49 nC | 625 W |
| IXFH46N65X3 | |
46 A | 73 mOhms | 40 nC | 520 W |
| IXFH70N65X3 | |
70 A | 44 mOhms | 66 nC | 780 W |
| IXFH90N65X3 | |
90 A | 33 mOhms | 95 nC | 960 W |
| IXFH34N65X3 | |
34 A | 100 mOhms | 29 nC | 446 W |
