Hirose Electric CX70M USB Type-C Connectors
Hirose Electric CX70M USB Type-C™ Connectors are mid-mount, minimized length USB Type-C compliant interface receptacles. CX70M are hybrid-type connectors supporting repair availability. Users can insert these Hirose Type-C connectors in the reverse by a symmetrical terminal layout. CX70M supports USB3.1 Gen1 (5Gbps), high-speed transmission.
Features
- Mid-mount & minimized length design for reduced space
- USB Type-C interface connector
- Hybrid (SMD + DIP) mounting type
- Can be inserted in the reverse by a symmetrical terminal layout
- Supports USB3.1 Gen1 (5Gbps), high-speed transmission
Additional Resources
Related Content
Hirose Electric CX USB Type-C Connectors
An ideal interface in various devices in the consumer, industrial machinery, and automotive markets.

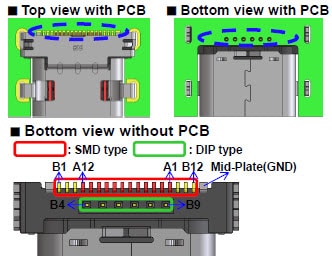

Top and Bottom View
