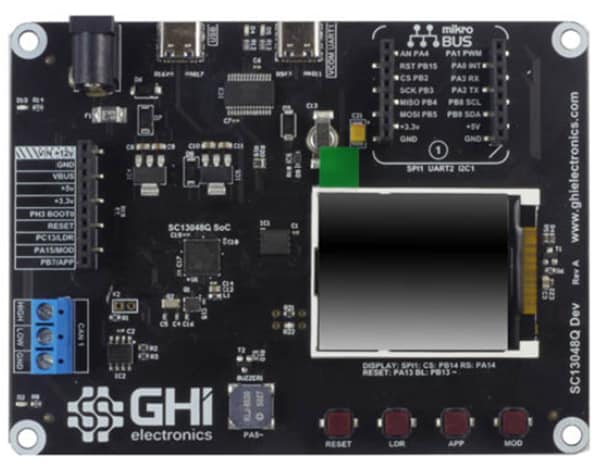

GHI Electronics SC13048Q SITCore Development Board

GHI Electronics SC13048Q SITCore Development Board incorporates the SC13048Q SoC soldered to the Board and a built-in 1.8" color serial display. The SC13048Q Board features a 10-pin socket header for connecting peripherals, along with a mikroBus connector, external power, CAN, USB host, and client and RTC backup supercap connectors. Additionally, the Board offers a buzzer, LEDs, a reset button, and user-programmable boot buttons.

The GHI Electronics SC13048Q SITCore Development Board permits fast development by connecting the Board's USB Client port to a host computer using a USB-C cable. The Board can be powered through either the USB client connectors or the barrel jack.

Features

  • Display
  • Expansion header
  • Click module connectors
  • Ethernet
  • CAN Transceiver
  • Buzzer
  • Optional 7V to 12V power input

Specifications

  • SC13048Q Chipset
  • 1.8" 160×128 Display
  • 1x Click connector
  • USB Client
  • USB Virtual com port
  • 4x Buttons
  • Buzzer
  • 1 User, 1 Power, 2 VCom LEDs
  • CAN Transceiver
  • Supercap power for RTC
  • Barrel power jack
