Diodes Incorporated AP7343D-33FS4-7B-EVM Evaluation Module

Diodes Incorporated AP7343D-33FS4-7B-EVM Evaluation Module evaluates the performance of an AP7343 regulator. This AP7343 is a low-dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise, and low quiescent current. The AP7343 evaluation board has a simple layout that helps power up the output voltage. Typical applications include smartphones, cameras, portable media players, portable videos, wireless adapters, and wireless communication.

Features

  • Evaluates the performance of the AP7343 regulator
  • Simple layout
  • 1.7V to 5.25V input voltage range
  • 0.9V to 3.6V output voltage range
  • 300mA output current
  • -40°C to 85°C operating temperature range

Applications

  • Smartphone
  • Tablet
  • RF supply
  • Cameras
  • Portable video
  • Portable media player
  • Wireless adapter
  • Wireless communication

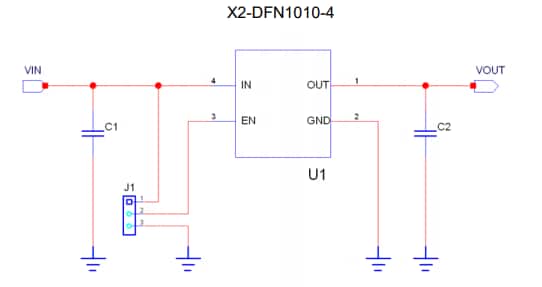

Board Schematic

Schematic - Diodes Incorporated AP7343D-33FS4-7B-EVM Evaluation Module

Related Regulator

Diodes Incorporated AP734x Dual Low Dropout Regulators

High output voltage accuracy, low RDSON, high PSRR, low output noise and low quiescent current.

Learn Moreabout Diodes Incorporated AP734x Dual Low Dropout Regulators View Productsrelated to Diodes Incorporated AP734x Dual Low Dropout Regulators
