Diodes Incorporated AH1390 Unipolar Hall Effect Switch

Diodes Incorporated AH1390 Unipolar Hall Effect Switch features dual outputs for portable and battery-powered consumer equipment for home appliances and industrial applications. The miniature micropower magnetic Unipolar Hall effect switch IC can operate over the supply range of 1.6V to 3.6V and uses a sleep function to give an average supply current of 1.3μA at 1.85V. Diodes Incorporated AH1390 has a 2kV ESD rating on the supply and output pins. To minimize PCB space, the AH1390 is packaged in low-profile X2-DFN1410-4.

Features

  • 2x monolithic unipolar hall switches
    • Operation with a North Pole (Output1) to part marking surface
    • Operation with a South Pole (Output2) to part marking surface
  • 1.6V to 3.6V supply voltage
  • 720uA operating supply current
  • -25mT to 25mT operating point
  • 1mA maximum output current
  • 230mW power dissipation (Pd)
  • Micropower operation
  • Dual outputs for independent pole detection for design flexibility
  • Internal pull-up and pull-down capability
  • Chopper stabilized design
    • Superior temperature stability
    • Extremely low switch-point drift
    • Insensitive to physical stress
  • Good RF noise immunity
  • -40°C to +85°C operating temperature range
  • 2kV ESD on supply and output pins
  • X2-DFN1410-4 packaging
  • RoHS compliant

Applications

  • Smart cover or dock detects cellular phones and tablet
  • Position detection for digital still, video cameras, and handheld gaming consoles
  • Door, lids, and tray positions detect switches, home appliances, and industrial applications
  • Level, proximity, and position switches
  • Contact-less switches in home appliances and industrial applications

Block Diagram

Block Diagram - Diodes Incorporated AH1390 Unipolar Hall Effect Switch

Application Circuit

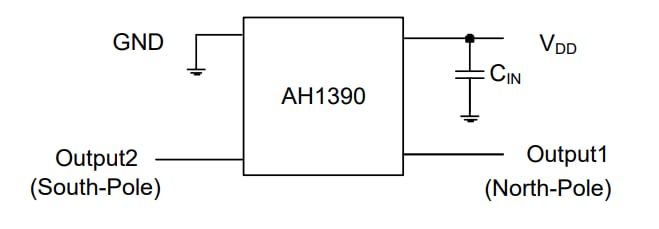

Application Circuit Diagram - Diodes Incorporated AH1390 Unipolar Hall Effect Switch
