CUI Inc VQA2-S DC-DC Converters

CUI Inc VQA2-S DC-DC Converters are designed with dual-regulated outputs and reinforced insulation. These converters feature 7000VDC isolation voltage and 5pF maximum isolation capacitance. The VQA2-S converters come with a variety of input and output variations and all models are UL/cUL 62368-1 certified. These converters have dimensions of 19.65mm x 7.05mm x 10.20mm and operate at -40°C to 105°C temperature range. The VQA2-S DC-DC converters are mainly used in IGBT and SiC driver applications.

Features

  • Dual-regulated outputs
  • Reinforced insulation
  • 7000VDC isolation voltage
  • 5pF maximum isolation capacitance
  • 100kHz switching frequency at full load, nominal input
  • -40°C to 105°C temperature range with derating
  • Continuous short circuit protection
  • UL/cUL 62368 certified
  • RoHS compliant

Applications

  • IGBTs
  • SiC drivers

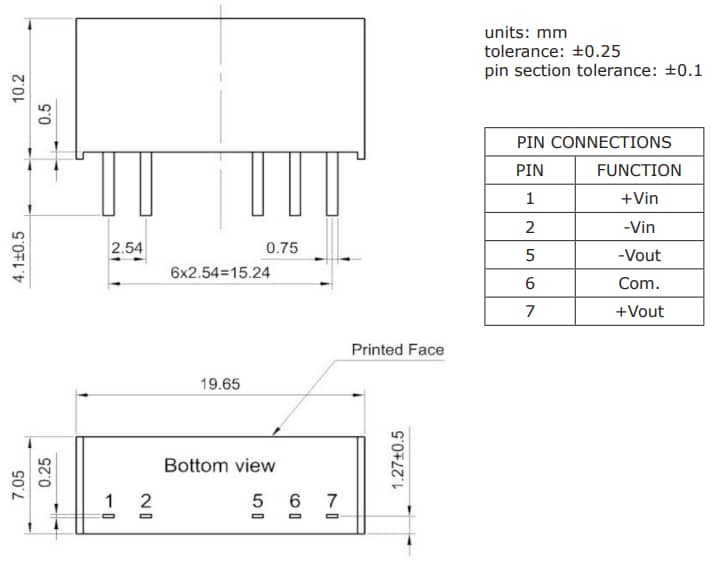

Mechanical Drawing

Mechanical Drawing - CUI Inc VQA2-S DC-DC Converters
View Results ( 19 ) Page
Dalies Numeris Duomenų Lapas Įvesties Įtampa, Nominali Įėjimo įtampa - min. Įėjimo įtampa - maks. Išėjimo įtampa-kanalas 1 Išėjimo įtampa-kanalas 2 Išvesties Srovės Kanalas 1 Išvesties Srovės Kanalas 2 Matmenys RoHS - Mouser
VQA2-12-D0603-S VQA2-12-D0603-S Duomenų Lapas 12 VDC 10.8 VDC 13.2 VDC 6 V - 3 VDC 220 mA 220 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-12-D1505-S VQA2-12-D1505-S Duomenų Lapas 12 VDC 10.8 VDC 13.2 VDC 15 V - 5 VDC 80 mA 40 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-24-D1505-S VQA2-24-D1505-S Duomenų Lapas 24 VDC 21.6 VDC 26.4 VDC 15 V - 5 VDC 80 mA 40 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-5-D1505-S VQA2-5-D1505-S Duomenų Lapas 5 VDC 4.5 VDC 5.5 VDC 15 V - 5 VDC 80 mA 40 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-5-D0603-S VQA2-5-D0603-S Duomenų Lapas 5 VDC 4.5 VDC 5.5 VDC 6 V - 3 VDC 220 mA 220 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-24-D1503-S VQA2-24-D1503-S Duomenų Lapas 24 VDC 21.6 VDC 26.4 VDC 15 V - 3 VDC 95 mA 95 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-12-D1502-S VQA2-12-D1502-S Duomenų Lapas 12 VDC 10.8 VDC 13.2 VDC 15 V - 2.5 VDC 100 mA 100 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-5-D2005-S VQA2-5-D2005-S Duomenų Lapas 5 VDC 4.5 VDC 5.5 VDC 20 V - 5 VDC 50 mA 200 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-5-D1803-S VQA2-5-D1803-S Duomenų Lapas 5 VDC 4.5 VDC 5.5 VDC 18 V - 3.5 VDC 80 mA 80 mA 19.65 mm x 7.05 mm x 10.2 mm Y
VQA2-12-D1504-S VQA2-12-D1504-S Duomenų Lapas 12 VDC 10.8 VDC 13.2 VDC 15 V - 4 VDC 120 mA 120 mA 19.65 mm x 7.05 mm x 10.2 mm Y
