Cosel MGFS40 PCB Mount-Type DC-DC Converters

Cosel MGFS40 PCB Mount-Type DC-DC Converters are 40W DC-DC converters with a 6-sided shield. These converters feature built-in overcurrent protection circuits and built-in remote ON/OFF. Cosel MGFS40 converters offer output voltage adjustability by an external variable resistor and high efficiency by synchronized rectification circuit. These converters come in an industry-standard 1" x 1" package and provide high reliability.

Features

  • 6-sided shield
  • High efficiency by the synchronized rectification circuit
  • Built-in overcurrent protection circuits that recover automatically
  • Built-in remote ON/OFF
  • Output voltage adjustability by an external variable resistor
  • High reliability

Specifications

  • 40W rated output wattage
  • 1500VDC input-output isolation voltage (1 minute)
  • 4.5VDC to 13VDC or 9VDC to 36VDC or 18VDC to 76VDC wide input voltage ranges
  • Come in an industry standard 1" x 1" package
  • 3.3VDC, 5VDC, 12VDC, and 15VDC rated output voltages

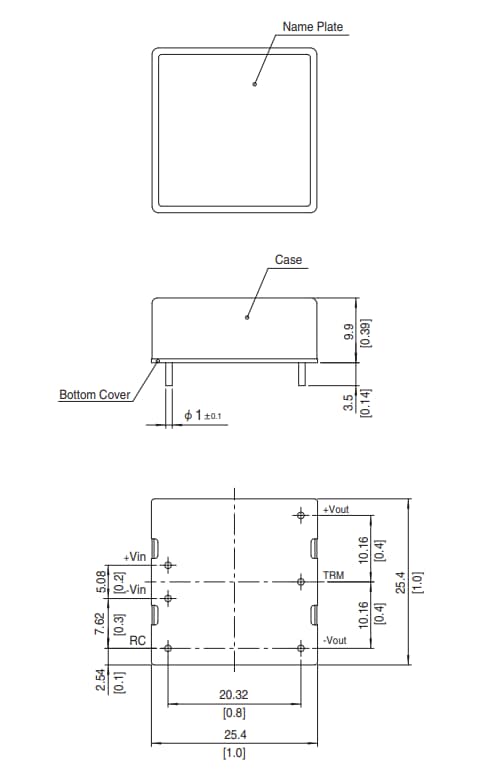

Mechanical Drawing

Mechanical Drawing - Cosel MGFS40 PCB Mount-Type DC-DC Converters
