Coherent FTLC9558REPM QSFP28 Optical Transceiver Module

Coherent FTLC9558REPM QSFP28 Optical Transceiver Module is designed for 100 Gigabit Ethernet links over multi-mode fiber (MMF). The FTLC9558REPM utilizes the I2C interface to access digital diagnostic functions. Other features include 4x25G parallel optics, a pull-tab release, and a single MPO receptacle. The FTLC9558REPM complies with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Coherent QSFP28 Optical Transceiver is also RoHS 6 compliant.

Features

  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation <2.5W
  • RoHS 6 compliant
  • Commercial case temperature range of 0°C to +70°C
  • Single 3.3V power supply
  • Maximum link length of 100m on OM4 MMF
  • 4x25Gb/s 850mm VCSEL-based transmitter
  • 4x25G electrical interface
  • Single MPO12 receptacle
  • I2C management interface

Applications

  • 100GBASE-SR4 100G Ethernet

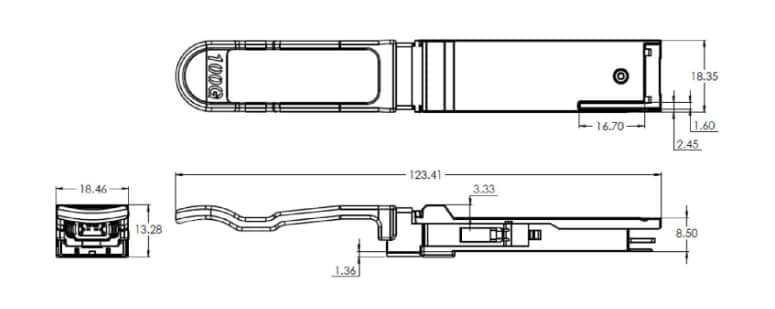

Dimensions

Chart - Coherent FTLC9558REPM QSFP28 Optical Transceiver Module
