Carling Technologies CHG USB CV-Chargers

Carling Technologies CHG USB CV-Chargers are designed to charge electronic devices compatible with single-port 2.0 and 3.1 USB types. These chargers deliver 3.6A fast maximum output current in extreme temperatures from -40°C to 85°C range. The USB CV-chargers feature a spring-loaded access door that automatically closes to protect electronic devices and offer safe and reliable operation. These chargers feature 18W maximum output power for single ports A and C, 9VDC to 32VDC operating voltage, and panel thickness varies from 0.76mm to 3.96mm range. The dual-port option is available in three configurations: two ports A (USB 2.0), two ports C (USB 3.1), or one port A (USB 2.0) and one port C (USB 3.1).

The USB CV-chargers comply with IEC 60529: 2013 and IP64 sealing protection, and 2014/30/EU and EN 50498:2010 CE certification. These chargers are used in golf carts, marine, military, lawn and garden equipment, and on/off-highway equipment.

Features

  • USB types
    • 2.0 for type A (4 pins)
    • 3.1 for type C (16 pins)
  • 1 USB port
  • Spring-loaded access
  • Center LED indicates charging in progress
  • Snap-mounting method
  • IP64 or IP65 sealing for above-panel components
  • Sealing protection
    • IP64-rated (for above-panel components of the switch)
    • IEC 60529: 2013
  • CE certification
    • 2014/30/EU
    • EN 50498:2010

Specifications

  • 9VDC to 32VDC operating voltage range
  • 4.5A fast charging current
  • -40°C to +85°C operating temperature range
  • 0.76mm to 3.96mm panel thickness range
  • 47.73mm x 25.9mm x 64.2mm dimensions
  • Life cycles
    • 5000 cycles for USB port
    • 30,000 cycles for door

Applications

  • Lawn and garden equipment
  • Golf carts
  • Marine
  • Military
  • On/off-highway equipment

Videos

Dimensions

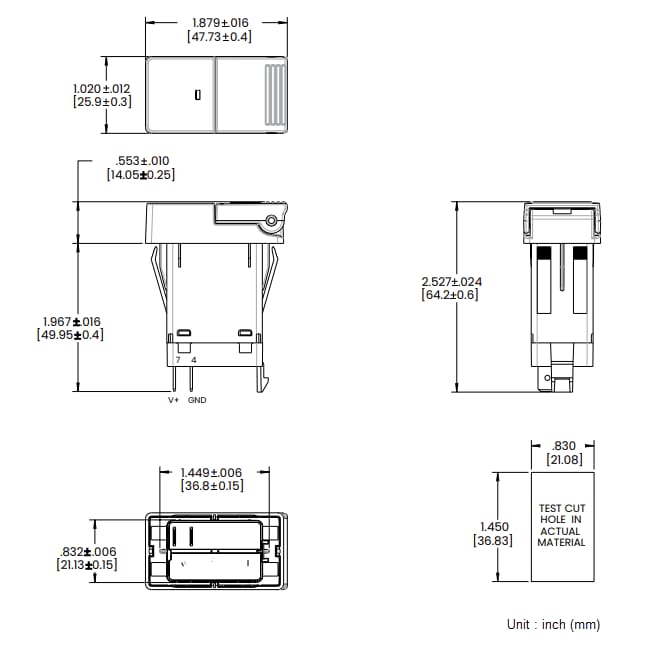

Mechanical Drawing - Carling Technologies CHG USB CV-Chargers
