Bosch BMM150 Shuttle Board 3.0

Bosch Sensortec BMM150 Shuttle Board 3.0 demonstrates the BMM150 magnetometer, which is mounted on the PCB. Used with the application board 3.0, the BMM150 Shuttle Board 3.0 evaluates the various functionalities provided on BMM150.

The BMM150 Shuttle Board 3.0 enables easy access to the sensor pins via a simple socket and directly plugs into the Bosch application board 3.0.

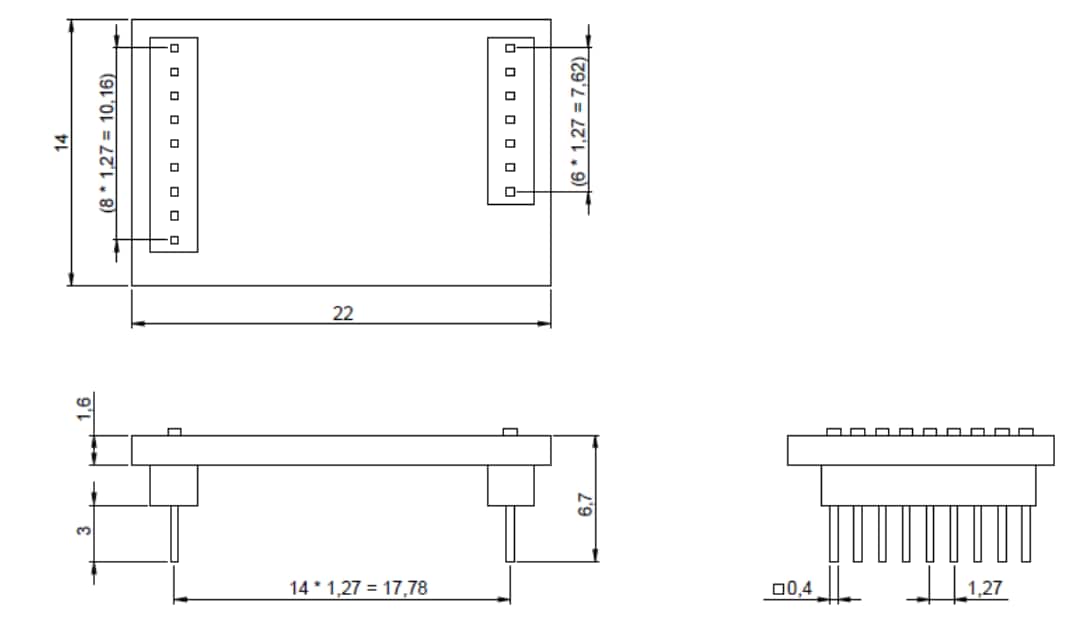

Dimensions mm

Mechanical Drawing - Bosch BMM150 Shuttle Board 3.0

Associated Sensor

Bosch BMM150 3-Axis Digital Geomagnetic Sensors

Low-power, low-noise 3-axis digital geomagnetic sensors that fit the needs of compass applications.

Learn Moreabout Bosch BMM150 3-Axis Digital Geomagnetic Sensors View Productsrelated to Bosch BMM150 3-Axis Digital Geomagnetic Sensors

Associated App Board

Bosch Application Board 3.1

Versatile and sensor-independent development platforms for evaluating various sensors.

Learn Moreabout Bosch Application Board 3.1 View Productsrelated to Bosch Application Board 3.1
