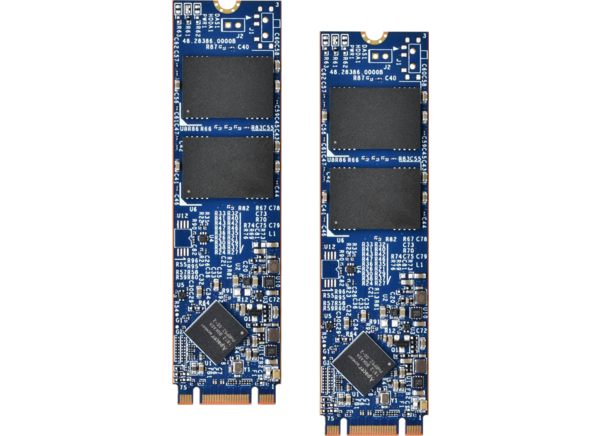

Apacer Technology Inc. ST250-M280 Flash Drives

Apacer Technology Inc. ST250-M280 Flash Drives include a built-in thermal sensor to monitor the temperature of the SSDs through S.M.A.R.T commands to prevent overheating. These flash drives are the next-generation SSDs with compact and removable storage supporting larger, faster hosts deployed in a wide range of applications requiring incredible performance. The ST250-M280 flash drives come with Advanced Encryption Standards (AES) for data safeguarding. These flash drives feature a 3.3V±5% supply voltage, 0°C to 70°C operating temperature range, and are RoHS recast compliant. The ST250-M280 flash drives offer various implementations, including global wear leveling, power-saving modes, hyper cache technology, flash bad-block management, S.M.A.R.T, TRIM, DataDefender™, and SMART Read Refresh™.

Features

  • Compliance with SATA Revision 3.2:
    • SATA 6Gb/s interface
    • ATA-8 command set
    • Backward compatible with SATA 1.5Gb/s or 3Gb/s
  • LED Indicators for drive behavior
  • Reliability:
    • Thermal sensor
    • End-to-End data protection
  • Performance:
    • 600MB/sec burst read/write
    • Up to 560MB/sec sequential read
  • RoHS recast compliant (complies with 2011/65/EU standard)
  • Flash management:
    • Low-Density Parity-Check (LDPC) code
    • Global wear leveling
    • Flash bad-block management
    • Flash translation layer - page mapping
    • S.M.A.R.T.
    • DataDefender™
    • ATA secure erase
    • Device sleep
    • TRIM
    • Hyper cache technology
    • SMART read Refresh™

Specifications

  • 3.3V±5% supply voltage
  • Temperature range:
    • ST250-M280 BiCS4:
      • 0°C to 70°C operating
      • -40°C to 100°C storage
    • ST250-M280 BiCS5:
      • 0°C to 70°C operating
      • -55°C to 100°C storage
  • Power consumption:
    • ST250-M280 BiCS4:
      • 455mA in active mode
      • 65mA in idle mode
    • ST250-M280 BiCS5:
      • 380mA active mode
      • 65mA idle mode

Functional Block Diagram

Block Diagram - Apacer Technology Inc. ST250-M280 Flash Drives

Datasheets

View Results ( 15 ) Page
Dalies Numeris Atminties dydis Matmenys Palaikomas Rašymas Palaikomas Nuskaitymas Aktyvaus režimo srovė
A52.25CHGA.002GW
A52.25CJGA.002ES 256 GB 80 mm x 22 mm x 2.38 mm 510 MB/s 560 MB/s 375 mA
A52.25CGGA.002J2
A52.25CJGA.002GW
A52.25CKGA.002GW
A52.25CLGB.003GW
A52.25CMGB.001GW
A52.25CGGA.00178 64 GB 80 mm x 22 mm x 2.38 mm 300 MB/s 470 MB/s 345 mA
A52.25CHGA.00178 128 GB 80 mm x 22 mm x 2.38 mm 500 MB/s 560 MB/s 395 mA
A52.25CJGA.00178 256 GB 80 mm x 22 mm x 2.38 mm 470 MB/s 560 MB/s 430 mA
Paskelbta: 2023-05-30 | Atnaujinta: 2023-07-10
