Analog Devices Inc. EVAL-ADE9430ARDZ Evaluation Board
Analog Devices Inc. EVAL-ADE9430ARDZ Evaluation Board is used in association with the STM32 NUCLEOF413ZH. The EVAL-ADE9430ARDZ allows a quick evaluation and prototyping of energy and Class S power quality measurement systems with the ADE9430. The ADI EVAL-ADE9430ARDZ Evaluation Board executes the ADSW-PQ-CLS Power Quality Library and application examples to simplify the implementation of larger systems.
Features
- Energy and Class S power quality measurement evaluation board with ADE9430 multiphase energy and power quality monitoring IC
- 3-phase 4-wire, 3-phase 3-wire, or 3-wire single-phase measurements
- Direct interface with current output current transformers
- Up to 240Vrms nominal line neutral voltage measurement
- For use with the ADSW-PQ-CLS Power Quality Library
Required Equipment
- Micro USB cable
- Voltage channel interconnects
- ADSW-PQ-CLS Power quality library
Kit Contents
- STM32 NUCLEO-F413ZH
- EVAL-ADE9430ARDZ evaluation board
- Current transformers
Additional Resources
Supported Device
Analog Devices Inc. ADE9430 Power Quality Monitoring IC
Highly accurate, fully integrated polyphase energy and power quality monitoring devices.
Related Development Tools
STMicroelectronics STM32 Nucleo-144 Development Boards
Designed to build prototypes by choosing combinations of performance and power consumption features.
PCB Layout

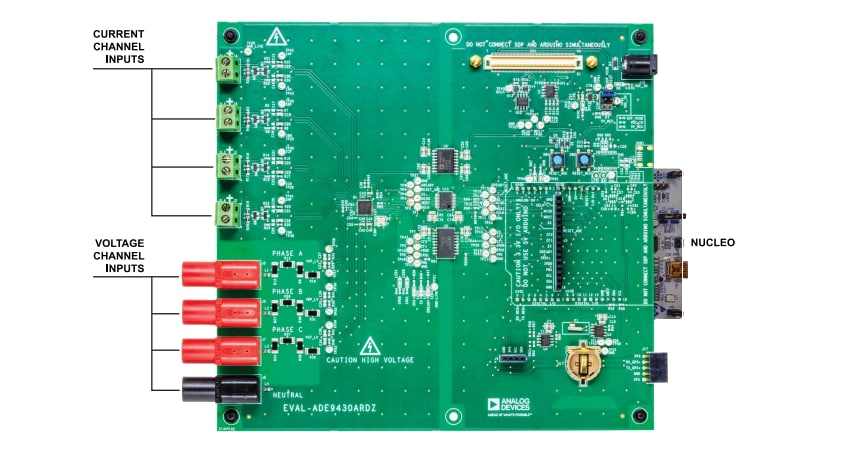

Connection Diagram
