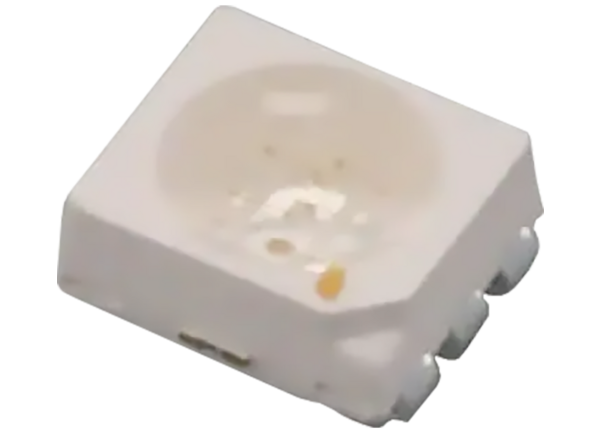

American Bright LED BL-Hx SMD Standard LEDs

American Bright LED BL-Hx SMD Standard LEDs are compatible with infrared and vapor phase reflow solder processes and automatic placement equipment. These standard LEDs are suitable for all SMT assembly methods. The BL-Hx SMD standard LEDs feature a 5V reverse voltage and a "water-clear" lens appearance. These LEDs comply with the RoHS standards. Typical applications include automotive lighting, backlighting, status indicators, and general use.

Features

  • Suitable for all SMT assembly methods
  • Compatible with infrared and vapor phase reflow solder process
  • Compatible with automatic placement equipment
  • 5V reverse voltage
  • RoHS-compliant

Applications

  • Automotive:
    • Dashboards
    • Stop lamps
    • Turn signals
  • General use
  • Backlighting:
    • LCDs
    • Keypad advertising
  • Status indicators in consumer and industrial electronics

Additional Resources

View Results ( 26 ) Page
Dalies Numeris Duomenų Lapas Gaminys Pakuotė / Korpusas Apšvietimo spalva Jei – tiesioginė srovė Vf - tiesioginė įtampa Bangos ilgis / spalvų temperatūra Šviesos stipris Žiūrėjimo kampas Vardinė dalia Ilgis Aukštis Plotis Objektyvo Spalva Objektyvo Forma Objektyvo Skaidrumas
BL-HGK38E-TRC-Q BL-HGK38E-TRC-Q Duomenų Lapas Green LEDs 0602 (1706 metric) Green 5 mA 2.8 V 535 nm 210 mcd 120 deg 70 mW 1.7 mm 1.1 mm 0.6 mm Colorless Rectangular Water Clear
BL-HB332Y BL-HB332Y Duomenų Lapas Blue LEDs 1208 (3020 metric) Blue 20 mA 3.3 V 470 nm 300 mcd 120 deg 75 mW 3 mm 1.3 mm 2 mm Colorless Rectangular Water Clear
BL-HB333Q-AV-TRB BL-HB333Q-AV-TRB Duomenų Lapas Blue LEDs 1206 (3216 metric) Blue 5 mA 2.8 V 470 nm 15 mcd 120 deg 100 mW 3.2 mm 0.5 mm 1.6 mm Colorless Rectangular Water Clear
BL-HB535A-TRB BL-HB535A-TRB Duomenų Lapas Blue LEDs 0805 (2012 metric) Blue 20 mA 3 V 470 nm 140 mcd 120 deg 70 mW 2 mm 1 mm 1.25 mm Colorless Rectangular Water Clear
BL-HBXJXGX32L BL-HBXJXGX32L Duomenų Lapas RGB LEDs 2020 (5050 metric) RGB 20 mA 3.3 V, 3.2 V, 2 V 470 nm, 525 nm, 630 nm 400 mcd, 1900 mcd, 800 mcd 120 deg 110 mW, 110 mW, 75 mW 5.4 mm 1.3 mm 5 mm Colorless Round Water Clear
BL-HJDGKKC32M-A BL-HJDGKKC32M-A Duomenų Lapas Multi-Color LEDs 1411 (3528 metric) Red, Yellow, Green 20 mA 2 V, 3.2 V, 2 V 630 nm, 530 nm, 594 nm 220 mcd, 1800 mcd, 300 mcd 120 deg 75 mW, 120 mW, 75 mW 3.5 mm 1.9 mm 2.8 mm Colorless Round Flat Water Clear
BL-HJE33A-AV-TRB BL-HJE33A-AV-TRB Duomenų Lapas Red LEDs 1206 (3216 metric) Red-Orange 20 mA 2.2 V 630 nm 475 mcd 60 deg 50 mW 3.2 mm 1.4 mm 1.6 mm Colorless Rectangular Water Clear
BL-HJE37A-AV-TRB BL-HJE37A-AV-TRB Duomenų Lapas Red LEDs 0402 (1005 metric) Red-Orange 20 mA 2 V 630 nm 100 mcd 120 deg 52 mW 1 mm 0.4 mm 0.5 mm Colorless Rectangular Water Clear
BL-HJLG6BH32M-A BL-HJLG6BH32M-A Duomenų Lapas RGB LEDs 1411 (3528 metric) RGB 20 mA 2 V, 3.1 V, 3.1 V 630 nm, 530 nm, 475 nm 900 mcd, 1300 mcd, 190 mcd 120 deg 75 mW, 120 mW, 120 mW 3.5 mm 1.9 mm 2.8 mm Colorless Round Flat Water Clear
BL-HJXGXBX32M-D BL-HJXGXBX32M-D Duomenų Lapas RGB LEDs 1411 (3528 metric) RGB 20 mA 3.2 V, 3 V, 2 V 475 nm, 530 nm, 630 nm 350 mcd, 2000 mcd, 800 mcd 120 deg 75 mW, 110 mW, 110 mW 3.5 mm 1.9 mm 2.8 mm Colorless Round Flat Water Clear
