QTE-040-08-L-D-A

Name: Samtec QTE-040-08-L-D-A
Brand: Samtec
SKU: 200-QTE04008LDA
Price: 13.41 EUR
Availability: OutOfStock

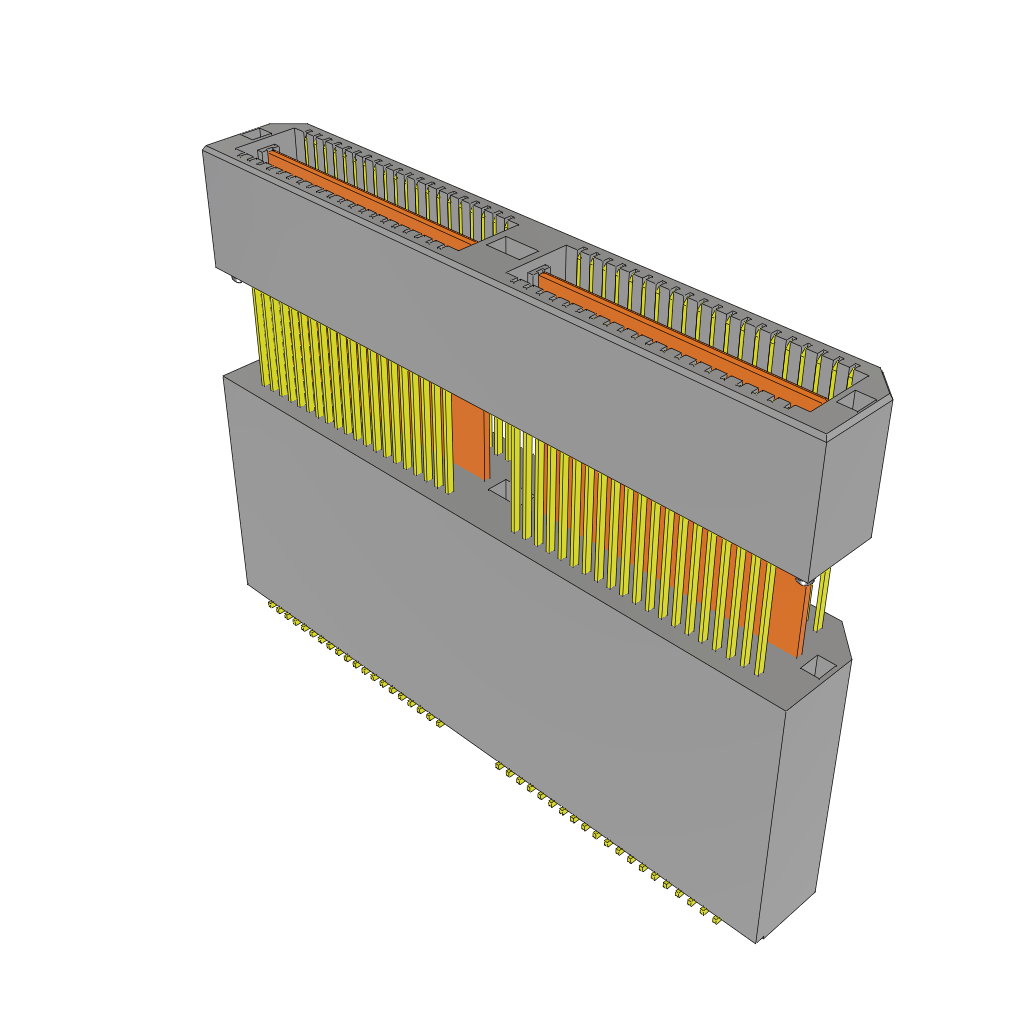

Vaizdai skirti tik iliustracijai
Žr. produkto specifikacijas

Mouser #:

200-QTE04008LDA

Mfr. #:

QTE-040-08-L-D-A

Gam.:

Samtec

Aprašymas:

Plokščių ir tarpinės jungtys Q Strip High-Speed Ground Plane Header

Duomenų Lapas:

QTE-040-08-L-D-A Duomenų Lapas (PDF)

ECAD modelis:

Atsisiųskite nemokamą Library Loader, kad galėtumėte konvertuoti šį failą darbui su ECAD įrankiu. Sužinokite daugiau apie ECAD Modelį.

Daugiau informacijos

Sužinokite daugiau apie Samtec QTE-040-08-L-D-A

Prieinamumas

Turime sandėlyje:: Ne Sandėlyje Esantys

Įvyko netikėta klaida. Prašome pabandyti vėliau.
Gamintojo numatytas pristatymo laikas: 2 Savaičių Apytikriai apskaičiuotas gamybos laikas gamykloje.

Įvesti kiekį:

Min. 1 Užsakoma po 1

Vieneto kaina:

-,-- €

Plėt. Kaina:

-,-- €

Numatomas Įkainis:

Kainodara (EUR)

Qty.	Vieneto kaina	Plėt. Kaina
	13,41 €	13,41 €
	13,01 €	130,10 €
	12,68 €	317,00 €
	11,14 €	1 203,12 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Produkto Požymis	Atributo vertė	Pasirinkite Požymį
Gamintojas:	Samtec
Gaminio kategorija:	Plokščių ir tarpinės jungtys
RoHS:
Gaminys:	Headers
Padėčių skaičius:	80 Position
Pitch:	0.8 mm (0.031 in)
Eilučių skaičius:	2 Row
Terminacijos Stilius:	Solder
Montavimo kampas:	Straight
Stack Aukštis:	30 mm
Dabartinė klasė:	2 A
Nurodytoji įtampa:	225 VAC
Minimali darbinė temperatūra:	- 55 C
Didžiausia darbinė temperatūra:	+ 125 C
Contact danga:	Gold
Contact medžiaga:	Phosphor Bronze
Korpuso medžiaga:	Liquid Crystal Polymer (LCP)
Serija:	QTE
Pakavimas:	Tray
Programa:	Power, Signal
Prekės Ženklas:	Samtec
Gamybos šalis:	Not Available
Distribucijos šalis:	Not Available
Kilmės šalis:	US
Degumo įvertinimas:	UL 94 V-0
Montavimo stilius:	SMD/SMT
Gaminio tipas:	Board to Board & Mezzanine Connectors
Gamyklinės pakuotės kiekis:	36
Subkategorija:	Board to Board & Mezzanine Connectors
Prekinis pavadinimas:	Q Strip

Rasta produktų:

Norėdami rodyti panašius produktus, pažymėkite bent vieną langelį

Pasirinkite bent vieną žymimąjį langelį, kad būtų rodomi panašūs šios kategorijos produktai.

Pasirinkti atributai: 0

Filtruoti dokumentą:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Q Strip™ High-Speed Mezzanine Connectors

Samtec Q Strip™ High-Speed Mezzanine Connectors are designed for high-speed board-to-board applications where signal integrity is essential. Q Strip connectors have surface-mount signal contacts and a surface-mount ground plane between the two rows of signals for improved electrical performance. Mated sets of Samtec Q Strip connectors are available in 8 different stack heights from 5mm (.197") to 30mm (1.180"). Options include guideposts for blind mate scenarios and alignment pins and locking clips for proper connector placement before reflow.

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).

Q Strip™ QTE High-Speed Ground Plane Headers

Samtec Q Strip™ QTE High-Speed Ground Plane Headers are an Extended Life Product (E.L.P.™) and offer 5mm to 30mm stack heights and up to 200 positions. The QTE series features a 225V_AC voltage rating, a 2A per pin current rating, and a 28+Gbps solution. These headers have an integral metal plane that is useful for power or ground. Samtec Q Strip™ QTE High-Speed Ground Plane Headers are compatible with UMPT/UMPS for flexible two-piece power/signal solutions.

5G Automotive & Transportation Solutions

Samtec 5G Automotive and Transportation Connectivity meets the needs of the growing 5G network market. As implementation of the 5G network quickly gains momentum, high-performance devices, systems, and test and measurement equipment are needed to support the ultra-high frequencies and high data rates that technologies like mmWave, Massive MIMO, beamforming, and full duplex demand. Samtec offers high-performance interconnects and high-level technical expertise to support these requirements, including an expanding portfolio of solutions ideal for Automotive applications.
